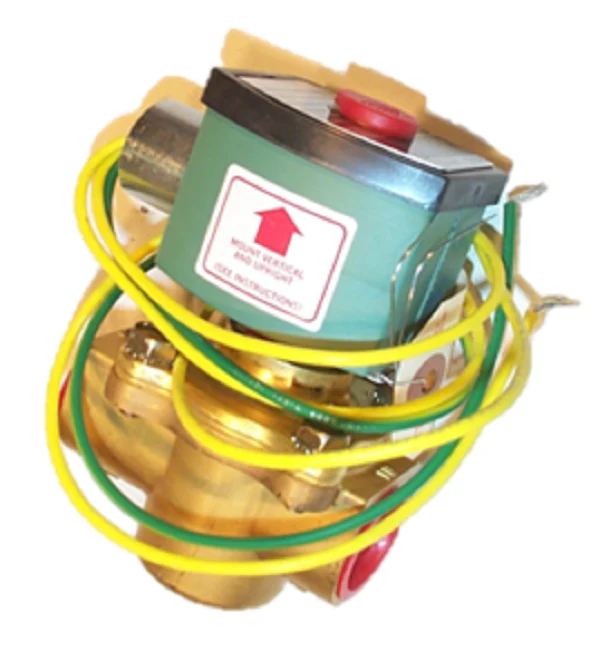

ASCO 8267G23 Valve
The ASCO 8267G23 is a high-performance 2-way normally open solenoid valve specifically engineered for demanding low-pressure steam applications. This direct acting steam valve features a rugged brass body and high-grade Teflon seat, ensuring superior thermal resistance and a bubble-tight shut-off for industrial boilers, sterilizers, and autoclaves. With a substantial 9.7 Cv flow coefficient and a 3/4" NPT connection, it manages 0-15 PSI steam with precision and minimal pressure drop. The 120Vac coil is protected by a NEMA 4X enclosure, providing washdown-ready durability and corrosion resistance in harsh mechanical rooms. Designed for longevity and reliable normally open operation, this ASCO solenoid valve is a critical component for HVACR steam system maintenance and high-flow process control. Its straight-through design facilitates easy installation and consistent performance in commercial steam heating environments.
Key Benefits- Enhanced Durability: Rugged brass construction and Teflon (PTFE) seating offer exceptional resistance to high-temperature steam wear.
- Superior Flow Capacity: A high 9.7 Cv rating ensures efficient fluid movement in high-demand HVACR steam systems.
- Reliable Safety: The normally open configuration provides a failsafe flow path, essential for specific boiler blow-down and venting protocols.
- Environmental Protection: The NEMA 4X enclosure protects electrical components against moisture, dust, and corrosive elements.
- Instant Response: The direct acting mechanism eliminates the need for minimum operating pressure, functioning reliably at 0 PSI.
What is the maximum steam pressure for the ASCO 8267G23?
This valve is optimized for low-pressure steam service, with a safe operating range of 0 to 15 PSI.
Can this solenoid valve be mounted in any orientation?
Yes, the ASCO 8267G23 is designed for universal mounting, although vertical and upright installation is recommended to minimize sediment buildup in the solenoid base.
Is the coil suitable for outdoor or washdown environments?
Absolutely. The integrated NEMA 4X enclosure is specifically rated for watertight, dust-tight, and corrosion-resistant protection.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
