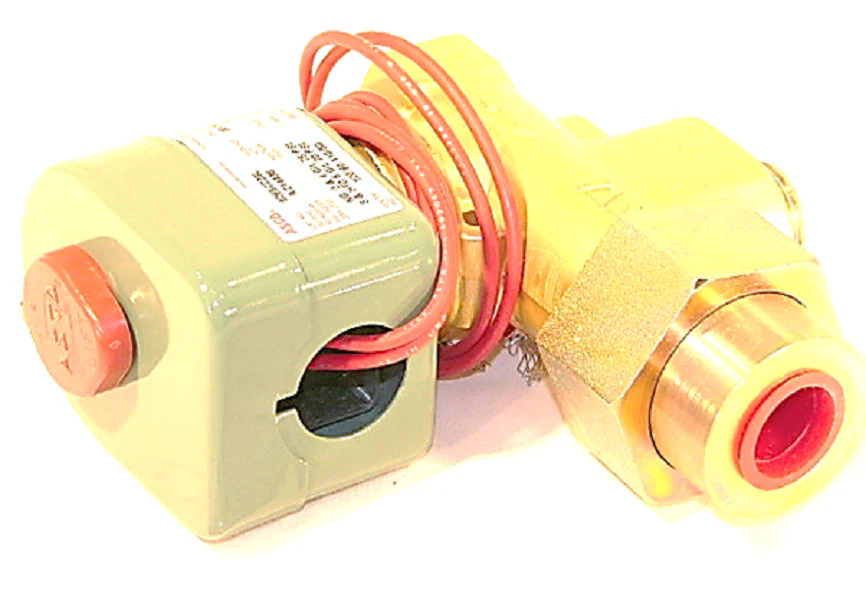

ASCO 8266C223L Valve
The ASCO 8266C223L Valve is a high-performance 2-way normally closed solenoid valve engineered for precision fuel management in commercial and industrial combustion systems. Specifically designed as a direct acting fuel oil shutoff, this 1/2 inch NPT solenoid valve features a rugged brass body equipped with a 1/2" NPT bypass for versatile installation. It provides exceptional flow control with a 2.5 Cv flow factor, handling a wide range of media including #2, #4, #5, and heated #6 fuel oils. Whether managing light oil at 60 SSU or heavy viscus fluids up to 5000 SSU, this unit maintains reliable operation within a 0-75 PSI range. Built for durability, it utilizes stainless steel seals and disc components within a NEMA 1 enclosure, ensuring consistent performance for 120Vac power configurations. As a fuel oil safety shutoff valve, it is an essential component for ensuring safe on-off control in oil burner applications.
Key Benefits- Versatile Fuel Compatibility: Optimized for multiple grades of fuel oil, from light #2 to heated #6 oil up to 5000 SSU.
- Direct Acting Reliability: Operates at zero differential pressure, making it ideal for low-pressure gravity-fed or pump-fed systems.
- Enhanced Durability: Features a forged brass body and stainless steel internal components for long-term corrosion resistance.
- Integrated Bypass: The 1/2" NPT bypass allows for easier maintenance and system pressure regulation without additional complex piping.
- Industry Compliance: Designed to meet the stringent requirements for safety shutoff in industrial oil burner assemblies.
What is the maximum viscosity this valve can handle?
The ASCO 8266C223L is rated to handle heated #6 fuel oil with a viscosity as high as 5000 SSU at pressures up to 70 PSI.
Does this valve require a minimum pressure to open?
No, this is a direct acting solenoid valve, meaning it can operate at a zero-pressure differential (0 PSI) and does not require line pressure to actuate.
Is the enclosure suitable for outdoor use?
This specific model comes with a NEMA 1 enclosure, which is designed primarily for indoor use to provide protection against contact with enclosed equipment and falling dirt.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
