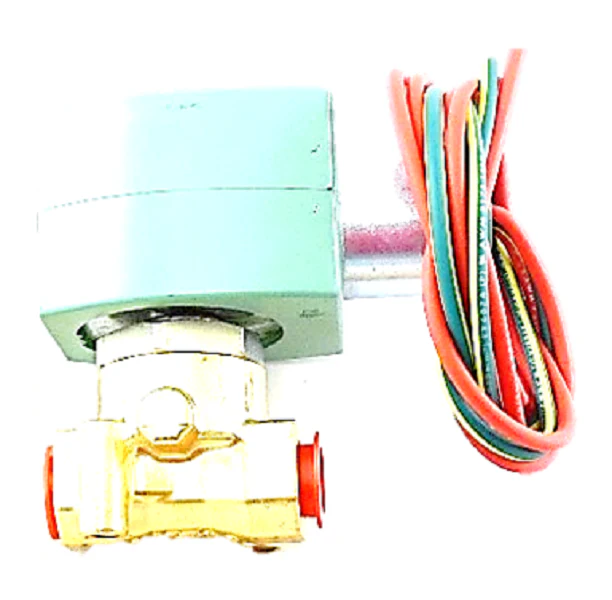

ASCO 8262H21V Valve
The ASCO 8262H21V is a high-performance 2-way normally closed solenoid valve engineered for precision in industrial oil shutoff applications. Featuring a direct-acting design, this 1/4" NPT fuel oil valve provides reliable on/off control without requiring a minimum operating pressure. Built with a rugged brass body and high-grade Viton seals, it is optimized for handling both #2 and #4 fuel oils, maintaining a .21 Cv flow factor across varying viscosities. This 120Vac ASCO valve is equipped with a NEMA 4X enclosure and a 1/2" conduit hub, offering superior protection in washdown or corrosive environments. Designed for HVACR burner control and general service, this valve ensures a tight shutoff for media up to 350 PSI. Whether you are replacing a burners solenoid valve or upgrading your system, the ASCO 8262H21V delivers the durability and specialized elastomer compatibility required for demanding combustion and fluid control processes.
Key Benefits:- Specialized Media Compatibility: Specifically designed for #2 fuel oil (up to 350 PSI) and #4 fuel oil (up to 270 PSI) using resilient Viton seals.
- Direct-Acting Performance: Ensures consistent operation from zero pressure to maximum rated differential, ideal for direct lift shutoff.
- Environmental Protection: The NEMA 4X enclosure provides a watertight and corrosion-resistant shield for sensitive electrical components.
- Versatile Installation: Compact 1/4" NPT brass construction allows for mounting in any position within tight mechanical spaces.
What is the difference between #2 and #4 fuel oil ratings for this valve?
The ASCO 8262H21V is rated for higher pressures (350 PSI) with lighter #2 fuel oil at 60 SSU, while the thicker #4 fuel oil at 300 SSU has a maximum operating pressure of 270 PSI due to increased fluid viscosity.
Does this solenoid valve require a minimum pressure to open?
No, because this is a direct-acting valve, it does not require a minimum pressure differential to function, making it reliable for gravity-fed or low-pressure oil lines.
Is the NEMA 4X enclosure suitable for outdoor use?
Yes, the NEMA 4X rating means the housing is protected against windblown dust, rain, and hose-directed water, as well as providing an extra level of protection against corrosion.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $129.51
-65%$129.51
$45.33ASCO 8262H21V Valve
The ASCO 8262H21V is a high-performance 2-way normally closed solenoid valve engineered for precision in industrial oil shutoff applications. Featuring a direct-acting design, this 1/4" NPT fuel oil valve provides reliable on/off control without requiring a minimum operating pressure. Built with a rugged brass body and high-grade Viton seals, it is optimized for handling both #2 and #4 fuel oils, maintaining a .21 Cv flow factor across varying viscosities. This 120Vac ASCO valve is equipped with a NEMA 4X enclosure and a 1/2" conduit hub, offering superior protection in washdown or corrosive environments. Designed for HVACR burner control and general service, this valve ensures a tight shutoff for media up to 350 PSI. Whether you are replacing a burners solenoid valve or upgrading your system, the ASCO 8262H21V delivers the durability and specialized elastomer compatibility required for demanding combustion and fluid control processes.
Key Benefits:- Specialized Media Compatibility: Specifically designed for #2 fuel oil (up to 350 PSI) and #4 fuel oil (up to 270 PSI) using resilient Viton seals.
- Direct-Acting Performance: Ensures consistent operation from zero pressure to maximum rated differential, ideal for direct lift shutoff.
- Environmental Protection: The NEMA 4X enclosure provides a watertight and corrosion-resistant shield for sensitive electrical components.
- Versatile Installation: Compact 1/4" NPT brass construction allows for mounting in any position within tight mechanical spaces.
What is the difference between #2 and #4 fuel oil ratings for this valve?
The ASCO 8262H21V is rated for higher pressures (350 PSI) with lighter #2 fuel oil at 60 SSU, while the thicker #4 fuel oil at 300 SSU has a maximum operating pressure of 270 PSI due to increased fluid viscosity.
Does this solenoid valve require a minimum pressure to open?
No, because this is a direct-acting valve, it does not require a minimum pressure differential to function, making it reliable for gravity-fed or low-pressure oil lines.
Is the NEMA 4X enclosure suitable for outdoor use?
Yes, the NEMA 4X rating means the housing is protected against windblown dust, rain, and hose-directed water, as well as providing an extra level of protection against corrosion.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
