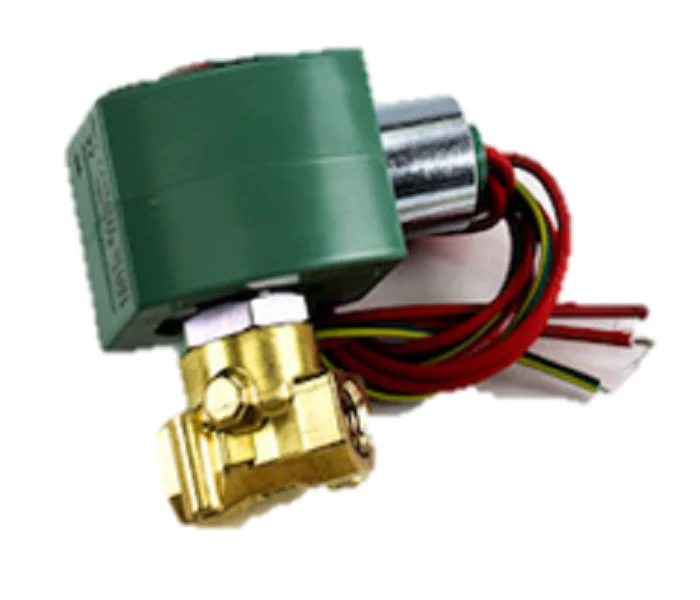

ASCO 8262H202-480V Valve
The ASCO 8262H202-480V Valve is a high-performance 2-way normally closed solenoid valve engineered for precision in demanding industrial environments. Featuring a direct acting design, this general service valve operates without requiring a minimum pressure, ensuring reliable flow control for air-inert gas, water, and light oil. Constructed with a rugged brass body and a durable NBR (Buna-N) disc, it provides a 0.52 Cv flow factor and supports high-pressure ratings up to 210 PSI for air, 200 PSI for water, and 145 PSI for oil. This model is specifically designed for 480Vac/60Hz electrical systems and includes a NEMA 4X enclosure, making it ideal for washdown environments and corrosive atmospheres. Its 1/4" NPT threaded connection and poppet-style seat offer a tight shut-off, while the welded core tube enhances overall structural integrity for long-term HVACR and process control applications.
Key Benefits- Versatile Media Compatibility: Effectively manages air, inert gas, water, and light oil (up to 300 SSU).
- Rugged Durability: The brass body and NEMA 4X rating provide exceptional resistance to corrosion and harsh environmental conditions.
- Zero Minimum Pressure: Direct acting operation allows the valve to function reliably even at 0 PSI.
- Reliable Tight Shut-Off: Features a small poppet design and NBR elastomer for leak-free performance in normally closed positions.
- Flexible Installation: Compact design with tapped mounting holes allows for mounting in any position.
What is the difference between direct acting and pilot-operated valves?
Direct acting valves like the 8262H202 do not require a pressure differential to open or close, making them ideal for low-pressure systems, whereas pilot-operated valves rely on system pressure for movement.
Can this valve be used in outdoor or wet environments?
Yes, the NEMA 4X enclosure is designed to provide protection against falling dirt, rain, sleet, snow, windblown dust, splashing water, and hose-directed water.
Is this solenoid valve compatible with 120V or 240V systems?
No, this specific model (8262H202-480V) is rated strictly for 480Vac. Using an incorrect voltage can cause coil failure or improper operation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
