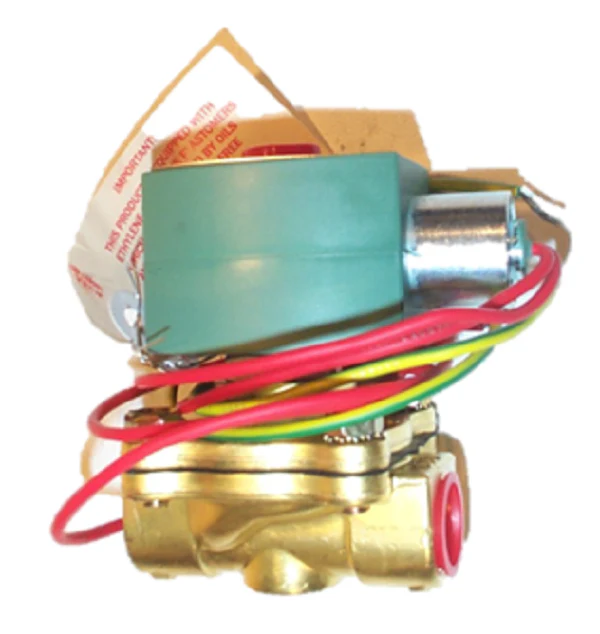

ASCO 8222G94 Valve
The ASCO 8222G94 is a specialized 2-way normally closed solenoid valve designed for high-performance fluid control in demanding steam and hot water service applications. Featuring a 1/2" NPT connection and a robust brass body, this pilot-operated valve is engineered to manage pressures from 0 to 50 PSI with a high 4 Cv flow factor. The internal EPDM seals and PTFE piston provide superior resistance to thermal degradation, supporting fluid temperatures up to 300° F. For electrical reliability in harsh environments, it is equipped with a 120V AC solenoid housed in a NEMA 4X enclosure, offering exceptional protection against corrosion and water ingress. This ASCO RedHat series 222 valve is a preferred solution for commercial laundry equipment, autoclaves, and boiler systems where precision and safety shutoff capabilities are required.
Key Benefits- Optimized Steam Control: Specifically designed for low-pressure steam and hot water cycles, ensuring consistent flow.
- Industrial-Grade Durability: The NEMA 4X rated housing provides watertight and corrosion-resistant protection for the electrical coil.
- Superior Sealing Technology: Features EPDM elastomers and Teflon wetted materials to prevent leaks under high-temperature conditions.
- High Flow Performance: A significant 5/8" orifice provides a 4 Cv coefficient, maximizing throughput for industrial processes.
What is the maximum temperature rating for this valve?
The ASCO 8222G94 is rated for fluid temperatures up to 300° F, making it ideal for steam heat applications.
Can this valve be used for high-pressure steam?
No, this specific model is a 0-50 PSI solenoid valve. For applications exceeding 50 PSI, a high-pressure rated ASCO alternative should be selected to ensure safe operation.
How does the NEMA 4X enclosure protect the solenoid?
The NEMA 4X enclosure is designed to protect internal electrical components against windblown dust, rain, and hose-directed water, while also offering a high level of protection against corrosion.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
