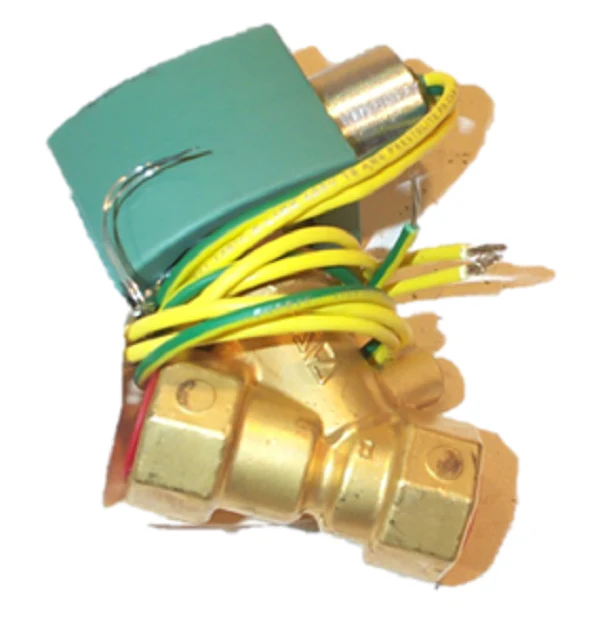

ASCO 8222G76 Valve
The ASCO 8222G76 is a high-performance 2-way normally closed solenoid valve specifically engineered for demanding steam flow control and high-temperature HVACR applications. Featuring a robust brass body and Teflon (PTFE) seals, this pilot-operated valve ensures reliable operation in environments ranging from commercial laundry and kitchen equipment to industrial autoclaves and sterilizers. Designed with a 1/2" NPT connection and a 2.5 Cv flow factor, it handles pressures from 1 to 125 PSI with precision. The NEMA 4X enclosure provides superior protection against corrosion and environmental factors, making it ideal for harsh industrial settings. Whether integrated into boiler systems or specialized heating equipment, the ASCO RedHat series delivers the durability required for 120Vac power configurations, ensuring peak efficiency and minimal downtime in critical thermal management processes.
Key Benefits:
- Steam-Rated Performance: Engineered specifically for steam service with a maximum fluid temperature rating of up to 353°F.
- Corrosion Resistance: The NEMA 4X watertight enclosure and brass construction protect internal components in washdown or corrosive environments.
- Zero-Leak Reliability: Equipped with Teflon seals and a floating piston design to provide tight shutoff and prevent internal leakage.
- Simplified Maintenance: Features a threaded bonnet for rapid inspection and serviceability without removing the valve from the piping.
- High Flow Capacity: A 2.5 Cv rating supports efficient media transfer for industrial HVAC and process control.
Common Questions:
- What is the maximum pressure for the ASCO 8222G76? This valve is rated for a steam pressure range of 1 to 125 PSI.
- Can this valve be mounted in any orientation? While it can function in various positions, mounting the solenoid vertical and upright is recommended for the longest service life and to prevent sediment buildup.
- What voltage does this model require? This specific ASCO 8222G76 model operates on a standard 120Vac / 60Hz power supply.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $426.19
-65%$426.19
$149.17ASCO 8222G76 Valve
The ASCO 8222G76 is a high-performance 2-way normally closed solenoid valve specifically engineered for demanding steam flow control and high-temperature HVACR applications. Featuring a robust brass body and Teflon (PTFE) seals, this pilot-operated valve ensures reliable operation in environments ranging from commercial laundry and kitchen equipment to industrial autoclaves and sterilizers. Designed with a 1/2" NPT connection and a 2.5 Cv flow factor, it handles pressures from 1 to 125 PSI with precision. The NEMA 4X enclosure provides superior protection against corrosion and environmental factors, making it ideal for harsh industrial settings. Whether integrated into boiler systems or specialized heating equipment, the ASCO RedHat series delivers the durability required for 120Vac power configurations, ensuring peak efficiency and minimal downtime in critical thermal management processes.
Key Benefits:
- Steam-Rated Performance: Engineered specifically for steam service with a maximum fluid temperature rating of up to 353°F.
- Corrosion Resistance: The NEMA 4X watertight enclosure and brass construction protect internal components in washdown or corrosive environments.
- Zero-Leak Reliability: Equipped with Teflon seals and a floating piston design to provide tight shutoff and prevent internal leakage.
- Simplified Maintenance: Features a threaded bonnet for rapid inspection and serviceability without removing the valve from the piping.
- High Flow Capacity: A 2.5 Cv rating supports efficient media transfer for industrial HVAC and process control.
Common Questions:
- What is the maximum pressure for the ASCO 8222G76? This valve is rated for a steam pressure range of 1 to 125 PSI.
- Can this valve be mounted in any orientation? While it can function in various positions, mounting the solenoid vertical and upright is recommended for the longest service life and to prevent sediment buildup.
- What voltage does this model require? This specific ASCO 8222G76 model operates on a standard 120Vac / 60Hz power supply.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
