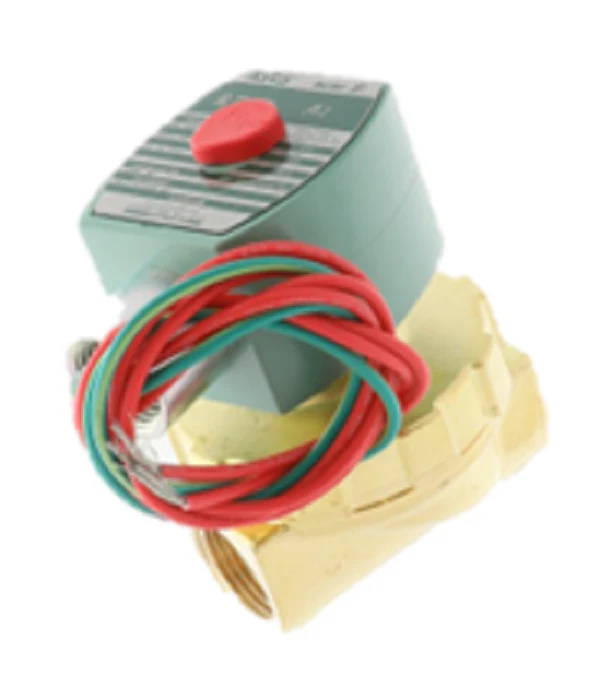

ASCO 8220G408 Valve
The ASCO 8220G408 Valve is a high-performance 2-way normally closed solenoid valve engineered for demanding thermal applications. Featuring a robust brass body and durable EPDM diaphragm, this 3/4 inch NPT pilot-operated valve is optimized for hot water and steam service. With a high flow coefficient of 8.8 Cv, it delivers reliable fluid control in industrial boiler systems and commercial laundry equipment. This 120Vac ASCO solenoid valve is rated for pressures up to 50 PSI for steam and 150 PSI for hot water, reaching a maximum fluid temperature of 300°F. The NEMA 4X enclosure provides superior protection against corrosion and moisture, ensuring longevity in harsh environments. Whether you are performing a solenoid valve replacement or a new HVACR installation, the RedHat series design offers the versatility and industrial-grade reliability required for precise pilot operated valve performance.
- Optimized Thermal Management: Specifically designed to handle the high-temperature demands of steam and hot water systems.
- Durable Construction: The EPDM elastomer and brass body ensure long-term compatibility with aggressive fluid media.
- Enhanced Protection: A watertight NEMA 4X housing protects electrical components from washdown and corrosive elements.
- High Flow Efficiency: An 8.8 Cv rating allows for significant volume throughput with minimal pressure drop across the 3/4" port.
Common Questions about the ASCO 8220G408
What is the maximum temperature rating for this valve?
The ASCO 8220G408 is designed for high-temperature service, safely handling steam and hot water up to 300°F.
Can this solenoid valve be mounted in any orientation?
For optimal performance and to prevent debris accumulation, it is recommended to mount the valve with the solenoid vertical and upright.
Does this valve require a minimum pressure to operate?
Yes, as a pilot-operated valve, it requires a minimum differential pressure (usually 5 PSI) to open and remain stable during operation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $496.74
-65%$496.74
$173.86ASCO 8220G408 Valve
The ASCO 8220G408 Valve is a high-performance 2-way normally closed solenoid valve engineered for demanding thermal applications. Featuring a robust brass body and durable EPDM diaphragm, this 3/4 inch NPT pilot-operated valve is optimized for hot water and steam service. With a high flow coefficient of 8.8 Cv, it delivers reliable fluid control in industrial boiler systems and commercial laundry equipment. This 120Vac ASCO solenoid valve is rated for pressures up to 50 PSI for steam and 150 PSI for hot water, reaching a maximum fluid temperature of 300°F. The NEMA 4X enclosure provides superior protection against corrosion and moisture, ensuring longevity in harsh environments. Whether you are performing a solenoid valve replacement or a new HVACR installation, the RedHat series design offers the versatility and industrial-grade reliability required for precise pilot operated valve performance.
- Optimized Thermal Management: Specifically designed to handle the high-temperature demands of steam and hot water systems.
- Durable Construction: The EPDM elastomer and brass body ensure long-term compatibility with aggressive fluid media.
- Enhanced Protection: A watertight NEMA 4X housing protects electrical components from washdown and corrosive elements.
- High Flow Efficiency: An 8.8 Cv rating allows for significant volume throughput with minimal pressure drop across the 3/4" port.
Common Questions about the ASCO 8220G408
What is the maximum temperature rating for this valve?
The ASCO 8220G408 is designed for high-temperature service, safely handling steam and hot water up to 300°F.
Can this solenoid valve be mounted in any orientation?
For optimal performance and to prevent debris accumulation, it is recommended to mount the valve with the solenoid vertical and upright.
Does this valve require a minimum pressure to operate?
Yes, as a pilot-operated valve, it requires a minimum differential pressure (usually 5 PSI) to open and remain stable during operation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
