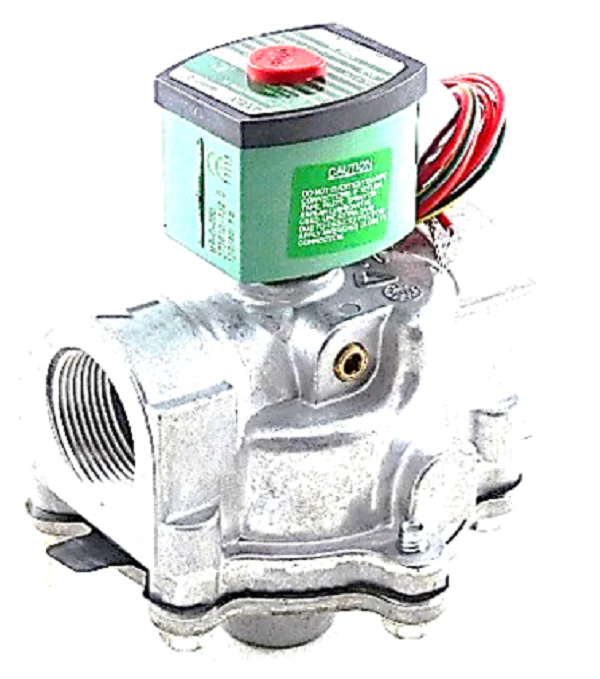

ASCO 8214G64 Valve
The ASCO 8214G64 is a premier 1 1/4" NPT solenoid valve specifically engineered for high-performance fuel gas venting in commercial and industrial burner systems. As a 2-way normally open valve, it is designed to remain open when de-energized to provide consistent venting, closing instantly upon electrification to ensure a leak-tight shutoff. This unit features a rugged aluminum body and durable NBR seals, capable of handling a significant flow capacity of 32 Cv or approximately 1,538,750 BTU/hr. Built for low-pressure environments, it operates reliably within a 0-5 PSI range. The NEMA 4X enclosure provides superior protection against corrosion and water ingress, making it an ideal choice for demanding mechanical rooms. Whether installed in boilers, furnaces, or kilns, this 120Vac gas vent valve delivers the redundant sealing and rapid response time required for modern combustion system safety and efficiency.
Key Benefits:- Enhanced Safety: The normally open configuration ensures the system vents properly during power loss or de-energized states.
- High Flow Capacity: A 32 Cv flow factor supports massive 1.5M+ BTU/hr throughput for large-scale industrial burners.
- Environmental Resilience: The NEMA 4X watertight and corrosion-resistant housing protects internal components in harsh conditions.
- Reliable Sealing: Features a NBR (Buna-N) seal and disc for compatible, long-lasting performance with fuel gas media.
What is the primary function of a gas vent solenoid valve?
A gas vent valve like the ASCO 8214G64 is used in a "double block and vent" system to exhaust gas trapped between two safety shutoff valves to the atmosphere, preventing pressure build-up or leakage into the combustion chamber.
Can the ASCO 8214G64 be used for high-pressure applications?
No, this specific model is optimized for low-pressure fuel gas systems and is rated for a maximum operating pressure differential of 5 PSI.
Is this valve suitable for outdoor installation?
Yes, the NEMA 4X enclosure is designed to withstand watertight requirements and provides protection against windblown dust, rain, and external ice formation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
This item is not eligible for free shipping.
Original: $697.76
-65%$697.76
$244.22ASCO 8214G64 Valve
