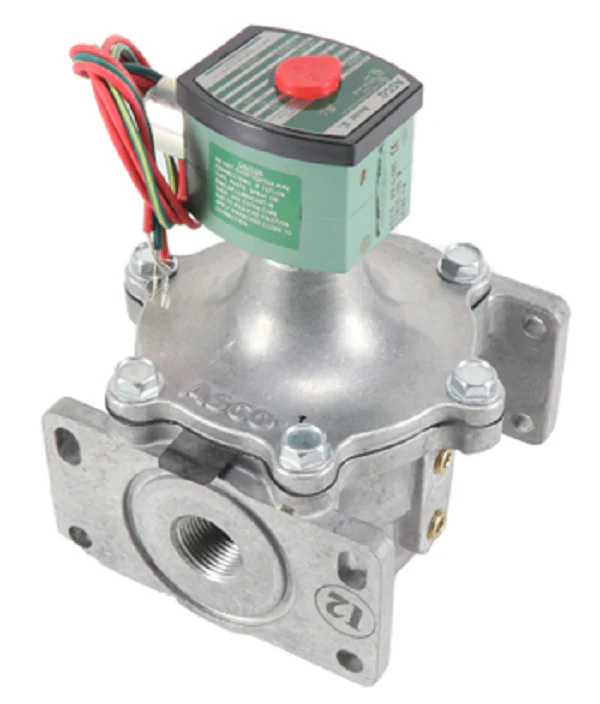

ASCO 8214G236-24V Valve
The ASCO 8214G236-24V Valve is a high-performance 2-way normally closed solenoid valve specifically engineered for critical fuel gas shutoff applications. Featuring a robust aluminum body and NBR seals, this pilot-operated diaphragm valve ensures reliable performance in commercial and industrial gas burners. With a significant flow coefficient (11 Cv) and a heating capacity of 593,200 BTU/hr, it manages high-volume throughput efficiently. The 3/4 inch NPT or flange connection provides versatile installation options, while the 24Vac electrical configuration integrates seamlessly with standard HVACR control systems. Designed for safety, it operates within a 0-5 PSI pressure range and is housed in a NEMA 4X enclosure, offering superior protection against corrosion and watertight integrity for demanding environments. This ASCO RedHat series component is the industry standard for secure on-off gas flow control.
Key Benefits of the ASCO 8214G236
- Redundant Sealing: The unique double disc design with overtravel ensures a leak-tight shutoff for enhanced safety.
- Environmental Protection: The NEMA 4X rating provides exceptional resistance to water and corrosion, suitable for outdoor or washdown areas.
- High Flow Capacity: Handles up to 593,200 BTU/hr, making it ideal for large-scale industrial heating equipment.
- Versatile Mounting: Compatible with both 3/4 inch threaded piping and optional flange adapters for flexible system integration.
- Reliable Operation: Rated for a 0 to 5 PSI pressure differential, specifically optimized for fuel gas service.
Common Questions About Fuel Gas Solenoid Valves
What is the difference between NPT and flange mounting for this valve?
The ASCO 8214G236-24V supports standard 3/4" NPT threaded connections for traditional piping, or can be adapted for flange mounting to allow for easier serviceability and maintenance in high-pressure gas lines.
Can this solenoid valve be used for outdoor applications?
Yes, the NEMA 4X enclosure is watertight and dust-tight, providing the necessary protection for the internal electrical components against harsh outdoor elements and corrosive environments.
Is the 24Vac version compatible with 120V systems?
No, this specific model requires 24Vac power. Using an incorrect voltage will cause the solenoid to fail or prevent the valve from opening. Always verify your control circuit voltage before installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
