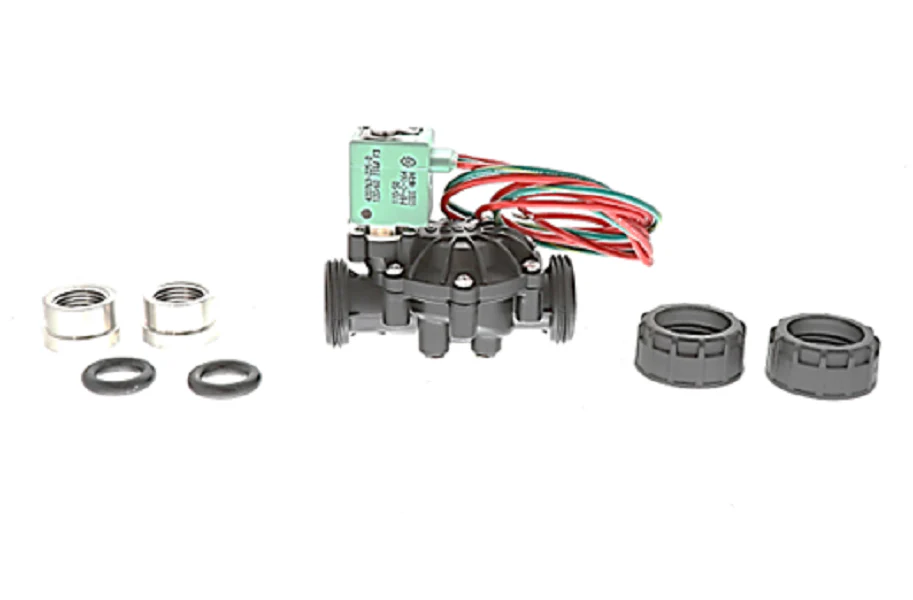

ASCO 8212A020L0100F2 Valve
The ASCO 8212A020L0100F2 Valve is a high-performance, 2-way normally open solenoid valve specifically engineered for water purification, reverse osmosis, and HVAC fluid control. Part of the dependable ASCO 212 Series, this valve features a lead-free composite body that meets stringent NSF 61-G and NSF 169 certifications, ensuring safety in drinking water applications. With a 1/2 inch NPT connection and a 0.75-inch orifice, it provides a high flow capacity (4.5 Cv) suitable for diverse industrial settings. This 120V AC solenoid valve operates within a pressure range of 5 to 120 PSI, utilizing an internal pilot design to optimize performance using line pressure. Designed for versatility, it can be mounted in any position to fit tight mechanical footprints. Whether integrated into water treatment systems or complex HVACR equipment, this ASCO solenoid valve delivers the durability and precision required for critical chemical and water distribution tasks.
Key Benefits:- Lead-Free Reliability: Engineered with a composite body and EPDM elastomers to comply with safe drinking water standards (NSF 61-G, 42, and 169).
- Efficient Fluid Control: The normally open (N/O) configuration ensures continuous flow when de-energized, ideal for fail-safe heating and cooling cycles.
- Versatile Installation: Features the patented FasN universal connection system for secure, leak-free 1/2" NPT threading in various piping configurations.
- Industrial Grade Power: The 120V/60Hz leaded coil is UL and CSA recognized, providing stable operation in industrial water control environments.
- High Flow Design: A 3/4" orifice supports a 4.5 Cv flow factor, making it an excellent choice for mid-size filtration and water conditioning units.
- What is the minimum pressure required for this valve? This model requires a minimum pressure differential of 5 PSI to function correctly as it is an internally piloted valve.
- Can this valve handle high-temperature fluids? Yes, the ASCO 8212A020L0100F2 is rated for fluid temperatures up to 180°F, making it suitable for many hot water applications.
- Is the coil replaceable if it burns out? Yes, ASCO 212 series valves feature replaceable coils, allowing for easy maintenance without removing the entire valve body from the line.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
