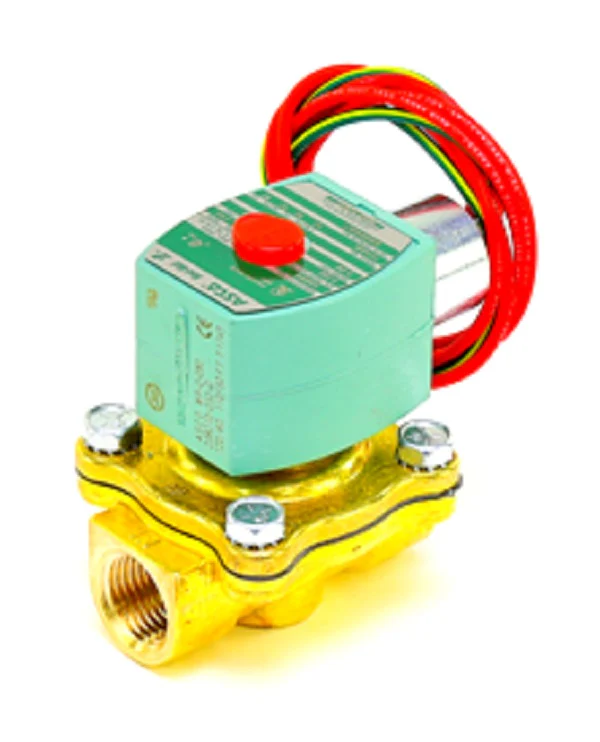

ASCO 8210G2LF Solenoid Valve
The ASCO 8210G2LF Solenoid Valve, also identified as the 8210G002LF, is a high-performance 2-way normally closed pilot operated valve designed for reliable flow control in demanding HVACR and industrial plumbing environments. Featuring a 1/2" NPT connection and a robust lead-free brass body, this general service valve is engineered to handle diverse media, including air, water, and light oil. The unit operates on a 120V/60Hz AC coil and is equipped with NBR seals to ensure leak-proof performance. Its NEMA 4X enclosure provides superior protection against corrosion and environmental elements, making it ideal for both indoor and outdoor installations. With a flow coefficient of 4 Cv and a maximum pressure rating of up to 200 PSI for air, this ASCO 1/2 inch solenoid valve delivers the precision and durability required for potable water applications and high-pressure pneumatic systems.
Key Benefits
- Lead-Free Construction: Complies with federal regulations for potable water systems, ensuring safe and reliable operation.
- High Flow Capacity: A 4 Cv flow factor allows for efficient medium-to-high volume fluid transfer.
- Versatile Pressure Range: Supports 5-200 PSI for air, 5-150 PSI for water, and 5-135 PSI for light oil.
- Enhanced Durability: The watertight NEMA 4X housing protects internal components in harsh or wash-down environments.
- Universal Media Compatibility: High-grade NBR seals provide excellent resistance to common industrial fluids and gases.
Common Questions
Is the ASCO 8210G2LF suitable for drinking water systems?
Yes, the "LF" designation indicates a lead-free brass body, making it compliant with safe drinking water standards for residential and commercial plumbing.
What is the difference between 8210G2LF and 8210G002LF?
These part numbers are identical; 8210G002LF is the full technical catalog number, while 8210G2LF is the shortened commercial identifier used by technicians and wholesalers.
Can this valve be mounted in any orientation?
For optimal performance and to prevent debris accumulation in the pilot orifice, it is recommended to mount the valve with the solenoid vertical and upright.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $231.94
-65%$231.94
$81.18ASCO 8210G2LF Solenoid Valve
The ASCO 8210G2LF Solenoid Valve, also identified as the 8210G002LF, is a high-performance 2-way normally closed pilot operated valve designed for reliable flow control in demanding HVACR and industrial plumbing environments. Featuring a 1/2" NPT connection and a robust lead-free brass body, this general service valve is engineered to handle diverse media, including air, water, and light oil. The unit operates on a 120V/60Hz AC coil and is equipped with NBR seals to ensure leak-proof performance. Its NEMA 4X enclosure provides superior protection against corrosion and environmental elements, making it ideal for both indoor and outdoor installations. With a flow coefficient of 4 Cv and a maximum pressure rating of up to 200 PSI for air, this ASCO 1/2 inch solenoid valve delivers the precision and durability required for potable water applications and high-pressure pneumatic systems.
Key Benefits
- Lead-Free Construction: Complies with federal regulations for potable water systems, ensuring safe and reliable operation.
- High Flow Capacity: A 4 Cv flow factor allows for efficient medium-to-high volume fluid transfer.
- Versatile Pressure Range: Supports 5-200 PSI for air, 5-150 PSI for water, and 5-135 PSI for light oil.
- Enhanced Durability: The watertight NEMA 4X housing protects internal components in harsh or wash-down environments.
- Universal Media Compatibility: High-grade NBR seals provide excellent resistance to common industrial fluids and gases.
Common Questions
Is the ASCO 8210G2LF suitable for drinking water systems?
Yes, the "LF" designation indicates a lead-free brass body, making it compliant with safe drinking water standards for residential and commercial plumbing.
What is the difference between 8210G2LF and 8210G002LF?
These part numbers are identical; 8210G002LF is the full technical catalog number, while 8210G2LF is the shortened commercial identifier used by technicians and wholesalers.
Can this valve be mounted in any orientation?
For optimal performance and to prevent debris accumulation in the pilot orifice, it is recommended to mount the valve with the solenoid vertical and upright.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
