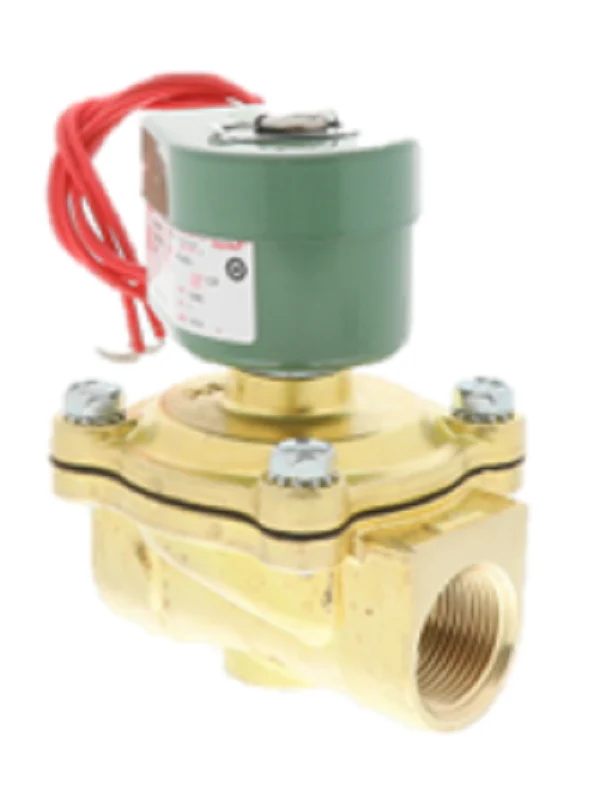

ASCO 8210B54 Solenoid Valve
The ASCO 8210B54 Solenoid Valve is a robust, 1-inch NPT pilot-operated 2-way normally closed solenoid valve designed for high-performance fluid control in industrial and HVACR systems. Built with a durable brass body and high-quality NBR seals (Buna-N), this general-purpose valve efficiently manages the flow of air, inert gas, water, and light oil. It features a significant 13 Cv flow coefficient, ensuring high-flow capacity for demanding applications like car washes, air compressors, and process water systems. Engineered for reliability, the ASCO 210 series valve operates at 120Vac and is protected by a NEMA 4X enclosure, making it suitable for washdown environments and corrosive atmospheres. With a pressure rating of 0-150 PSI for air and 0-125 PSI for water, this normally closed solenoid valve provides precise on/off control, remaining safely shut when de-energized to prevent unintended fluid bypass.
- High-Flow Capacity: A large 1-inch orifice and 13 Cv rating ensure maximum throughput for industrial fluid loops.
- Environmental Protection: The NEMA 4X rated enclosure offers superior resistance against corrosion and moisture in harsh settings.
- Versatile Media Handling: Compatible with air, water, and light oils, providing a single solution for diverse machinery needs.
- Rugged Construction: The forged brass body and stainless steel internal components are designed for long-term service in high-cycle applications.
Common Questions
What is the minimum pressure required for this valve to operate?
As a pilot-operated valve, the ASCO 8210B54 typically requires a minimum operating pressure differential (often around 5 PSI) to lift the diaphragm and allow flow.
Can this valve be mounted in any orientation?
While it can be mounted in any position, it is recommended to install the solenoid vertically and upright to prevent debris from accumulating in the core tube area.
Is the coil replaceable if it fails?
Yes, the 120V AC coil is a modular component that can be replaced without removing the valve body from the piping system.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
