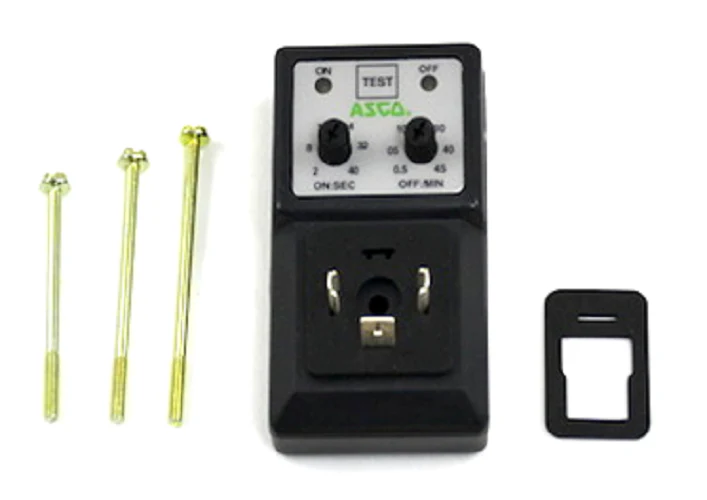

ASCO 272839-009 Timer Drain Kit
The ASCO 272839-009 Timer Drain Kit is a high-performance solution for the automatic drainage of moisture in sophisticated compressed air systems. This solid state electronic timer is engineered to control ASCO solenoid valves, transforming them into reliable condensate timer drains that prevent corrosive buildup and freeze damage. Designed for universal industrial use, it supports a wide supply voltage range from 24 to 240V AC/DC. The kit features adjustable timing cycles with an "on" range of 2 to 40 seconds and an "off" range of 30 seconds to 45 minutes, allowing for precision moisture management tailored to your specific pneumatic equipment maintenance needs. Built to withstand demanding environments, this ASCO adjustable timer includes a manual test/reset switch and clear LED indicators for real-time status monitoring, ensuring your industrial compressed air system operates at peak efficiency with minimal manual intervention.
Key Benefits- Versatile Voltage Compatibility: Operates efficiently across 24-240V AC/DC (50/60 Hz) for diverse industrial applications.
- Customizable Drainage Cycles: Fully adjustable "on" and "off" settings to optimize moisture discharge and reduce air loss.
- Enhanced System Reliability: Protects downstream pneumatic components from corrosion, scale, and water carryover.
- Real-Time Operation Status: Features LED indicators to clearly show timing phases and a manual override for maintenance testing.
- Durable Construction: Built for long-term industrial service with an operating temperature range of 14°F to 122°F.
How do I adjust the drainage intervals on the ASCO 272839-009?
The unit features two integrated dials: one for the "on" duration (2-40 seconds) and one for the "off" interval (30 seconds to 45 minutes). Adjust these to match the condensate accumulation rate of your system.
Can I use this timer kit with any solenoid valve?
This kit is specifically designed for use with ASCO solenoid valves equipped with a DIN 43650 ISO-4400/6952 connection, particularly those in the DIN 11 CDV assembly series.
Why is automatic condensate drainage important for my compressor?
Manual draining is often neglected; an automated kit ensures consistent removal of water, which prevents rust in pipes, damage to air tools, and potential system freezing in cold weather.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
