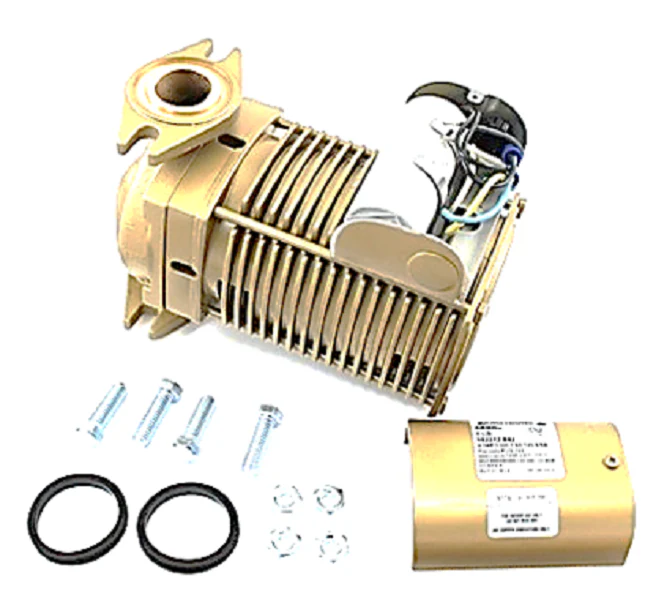

Armstrong Fluid Technology 182212-842 Pump
The Armstrong Fluid Technology 182212-842 Pump is a premium lead free bronze circulator pump designed for high-performance hydronic applications. As the direct replacement for 180210-842, this Model E12.2B features a powerful 2/5HP, 120Vac single-phase motor operating at 3300 RPM. Engineered for maximum efficiency, it serves as a reliable HVAC circulator pump for large residential and light commercial systems, including radiant heating, geothermal heat pumps, and snow-melt installations. Its maintenance-free design utilizes permanently lubricated bearings and a silicon carbide bellows-style mechanical seal, ensuring long-term durability without routine oiling. This versatile unit is compatible with 3/4", 1", 1 1/4", or 1 1/2" flanges, though flanges must be purchased separately. By utilizing advanced dry motor technology, the ARMflo E.2 Series provides superior wire-to-water efficiency, reducing overall energy consumption while maintaining a 50 GPM maximum flow rate and 56 feet of head pressure.
Key Benefits- High-Efficiency Performance: Technical hydraulic design delivers up to 41% better efficiency than competing fixed-speed pumps.
- Lead-Free Bronze Construction: Safe and compliant for potable water systems and domestic hot water generation.
- Simplified Maintenance: Permanently lubricated bearings and a quick-replace mechanical seal reduce onsite labor and lifetime costs.
- Redesigned Durability: Features a larger stainless steel shaft and a water slinger to protect electrical components from moisture intrusion.
- Flexible Installation: Compact flange-to-flange dimensions allow for easy upgrades in confined spaces without repiping.
Is this pump suitable for drinking water applications?
Yes, the 182212-842 is constructed from lead-free bronze, making it certified and safe for use in potable water systems.
What does it mean that this is a "dry motor" design?
Unlike wet rotor pumps, the dry motor in the E12.2B is separated from the fluid, which typically results in higher electrical efficiency and easier access for seal replacements.
Can I use my existing flanges with this unit?
This pump is designed to fit standard 2-bolt flanges ranging from 3/4" to 1 1/2", allowing for a seamless transition when replacing older Armstrong or competitive models.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
