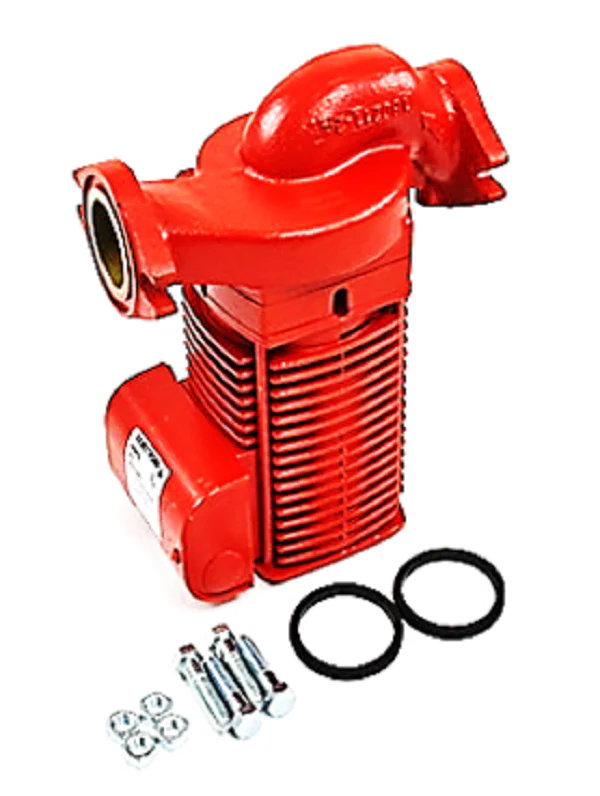

Armstrong Fluid Technology 182212-653 Pump
Enhance your hydronic system with the Armstrong Fluid Technology 182212-653, a high-performance Model E24.2 circulator pump engineered for maximum reliability. This cast iron circulator pump features a robust 2/5 HP, 120Vac single-phase motor operating at 3400 RPM, delivering an impressive flow range of up to 105 GPM. Designed with advanced E.2 Series technology, it utilizes a permanently lubricated, maintenance-free design that eliminates the need for manual oiling. The dry motor design and bellows-style mechanical seal with silicon carbide wear surfaces provide superior protection against leakage. Ideal for hydronic heating systems, radiant panels, and snow-melt installations, this in-line booster pump offers a maximum working pressure of 150 psi. Its compact footprint ensures easy installation with 1", 1 1/4", or 1 1/2" flanges, making it a versatile choice for residential and light commercial applications.
Key Benefits- High-Efficiency Performance: Advanced hydraulic design provides up to 41% better efficiency than similar fixed-speed pumps.
- Maintenance-Free Operation: Features permanently lubricated bearings and a "dry motor" construction for long-term durability.
- System Protection: Includes a larger stainless steel shaft and a water slinger to protect electrical components from moisture intrusion.
- Versatile Compatibility: Designed for closed-loop systems including geothermal heat pumps and domestic hot water generation.
- Easy Serviceability: The mechanical seal can be replaced in minutes, significantly reducing on-site labor costs.
What flange sizes can I use with the E24.2?
This pump is compatible with 1", 1-1/4", and 1-1/2" 2-bolt flanges, though flanges must be purchased separately.
Is this pump suitable for potable water systems?
No, this specific cast iron model is designed for closed-loop hydronic heating and cooling. For potable water, a bronze-body version is typically required.
Can I install this pump in a vertical or horizontal orientation?
The Model E24.2 is an in-line circulator; however, it should be installed with the motor shaft in a horizontal position to ensure proper bearing longevity.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
