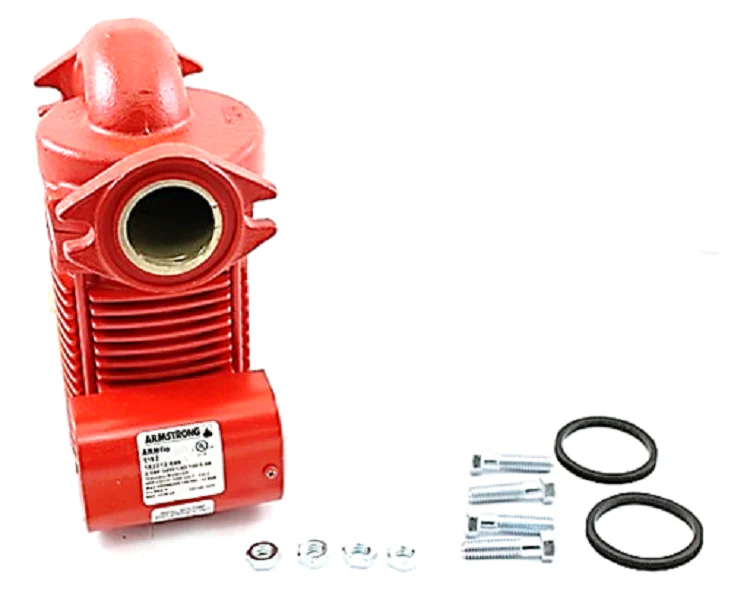

Armstrong Fluid Technology 182212-649 Pump
The Armstrong Fluid Technology 182212-649 is a high-performance E19.2 model from the renowned ARMflo E.2 Series. Engineered for demanding hydronic heating and cooling applications, this cast iron circulator pump features a 2/5 HP, 120V single-phase motor operating at 3450 RPM. Its advanced dry-motor design provides up to 41% better efficiency than competitive models, making it a premier energy-efficient pump for large residential and light commercial systems, including radiant heating, geothermal setups, and snow-melt installations. Designed with a larger stainless steel shaft and permanently lubricated sealed bearings, it offers maintenance-free operation and superior durability. This centrifugal pump is compatible with 1", 1-1/4", or 1-1/2" flanged connections, allowing for a replacement pump solution that fits seamlessly into existing piping. With a maximum flow rate of 90 GPM and a 150 PSI pressure rating, the Armstrong 182212-649 ensures reliable performance in chilled water recirculation and hot water systems.
This item is not eligible for free shipping.
Key Benefits- High Efficiency Performance: Advanced hydraulic design and motor technology deliver exceptional wire-to-water efficiency for reduced energy costs.
- Simplified Maintenance: Features a bellows-style mechanical seal with silicon carbide wear surfaces that can be replaced in under five minutes.
- Rugged Construction: Built with a heavy-duty cast iron body and a water slinger to protect electrical components from water intrusion.
- Versatile Application: Perfect for high-flow requirements in snow melting, radiant panels, and large-scale hydronic loops.
- Quiet Operation: Permanently lubricated bearings and a balanced impeller ensure smooth, ultra-quiet performance in residential settings.
What size flanges does the E19.2 use?
The pump is compatible with 1", 1-1/4", and 1-1/2" flanges. Please note that flanges are sold separately from the pump unit.
Is this pump suitable for potable water systems?
No, this specific model (182212-649) is constructed of cast iron and is intended for closed-loop heating and cooling systems. For domestic potable water, a bronze model (E19.2B) is required.
Can I install this pump in a horizontal or vertical orientation?
The Armstrong E.2 Series is designed for versatile in-line mounting, but it is critical to ensure the motor shaft remains horizontal to maintain proper lubrication and seal life.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
