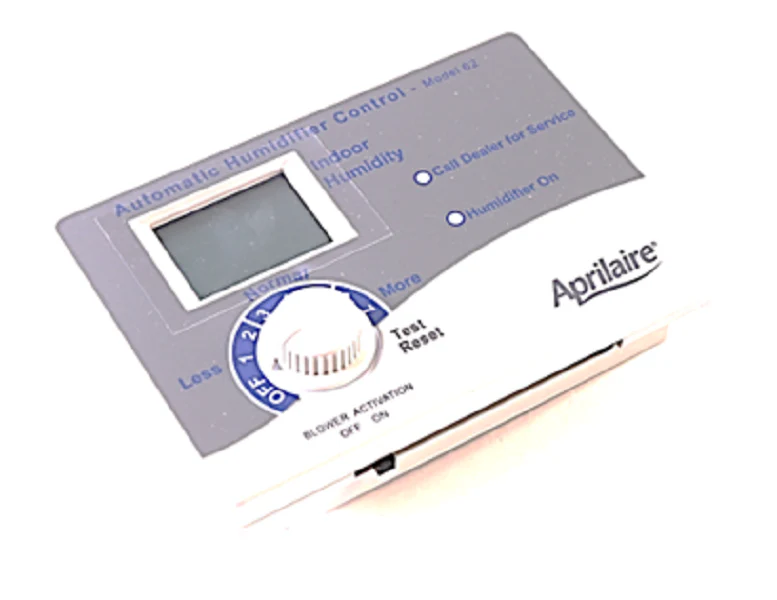

Aprilaire 62 Humidistat
The Aprilaire 62 Humidistat is a high-performance Automatic Digital Humidifier Control specifically engineered for steam humidifiers like the Aprilaire 800 and 865. This sophisticated HVAC humidity controller features an outdoor temperature sensor that enables "set it and forget it" operation by automatically adjusting the indoor relative humidity setpoint based on external conditions. By monitoring outdoor fluctuations, the Aprilaire 62 prevents window condensation in cold weather while maximizing air quality during the heating season. This model replaces previous 56 and 58 digital controls and includes a blower activation switch, which allows the humidistat to trigger the HVAC fan independently to circulate moisture even when there is no active call for heat. The front-facing digital display provides real-time data on indoor humidity levels and system status. Designed for return duct mounting, this 24V digital humidistat ensures your indoor air quality remains consistent and comfortable without the need for frequent manual adjustments.
Key Benefits:- Automatic Adjustments: Utilizes an outdoor sensor to optimize humidity levels and prevent moisture buildup on windows.
- Blower Activation: Integrated switch allows the control to turn on the HVAC fan to satisfy humidity needs without a call for heat.
- Digital Accuracy: Displays current indoor relative humidity on a clear, easy-to-read screen.
- Specialized for Steam: Purpose-built for Aprilaire 800 series steam units to handle high-output humidification requirements.
- Retrofit Compatible: Can be installed on any humidifier system using a standard 24V AC control circuit.
- Does this model show when to change the water panel? No, the Model 62 is designed for steam systems where canister maintenance is typically tracked on the humidifier unit itself, unlike the Model 60 which includes a water panel indicator.
- Can I use this in manual mode? Yes, the unit includes a manual mode sticker for installations where running a wire to an outdoor sensor is not feasible.
- Where should this humidistat be mounted? It must be mounted on the cold air return duct, at least 12 inches upstream of the humidifier dispersion tube or bypass outlet.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
