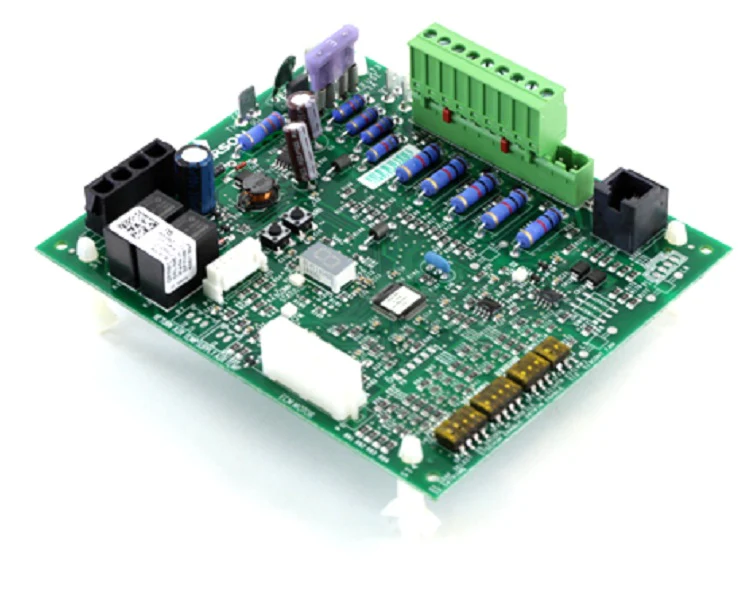

Amana-Goodman PCBJA104S PCM
The Amana-Goodman PCBJA104S PCM is a critical HVAC control board engineered for high-performance ECM air handler systems. This OEM replacement part serves as the central intelligence hub, meticulously regulating the blower motor, damper operations, and system sequencing to ensure peak energy efficiency. Utilizing advanced microprocessor technology, the PCBJA104S offers precise diagnostic LED feedback, allowing technicians to quickly identify system faults through specific error codes. Designed for a seamless fit in Amana and Goodman variable-speed units, it manages 120V and 24V power distribution while protecting sensitive components with an on-board 3-amp fuse. Whether you are addressing erratic fan behavior or a complete system shutdown, installing this genuine circuit board restores factory-standard communication between your thermostat and air handling unit. Its durable construction is built to withstand the rigorous electrical demands of modern residential climate control systems, providing stable operation and consistent indoor comfort.
Key Benefits- Direct OEM Match: Ensures full compatibility with Goodman and Amana air handlers, including AMN1630 models.
- Advanced Diagnostics: Features a 7-segment system diagnostic LED for rapid troubleshooting of communication and hardware faults.
- Optimized Airflow: Precision-controls variable speed motors to maintain consistent static pressure and improve indoor air quality.
- Circuit Protection: Includes an integrated 3-amp fuse to prevent expensive damage from low-voltage electrical shorts.
- Broad Cross-Reference: Serves as a reliable upgrade or replacement for older PCBJA101, PCBJA102, and PCBJA103 modules.
How do I know if my PCBJA104S control board is faulty?
Signs of failure include the blower motor failing to start, erratic cycling, or the diagnostic LED indicator remaining dark despite having 120V power at the board. Always check the 3-amp fuse before assuming the entire board is defective.
Can I use this board for a standard PSC motor?
No, the PCBJA104S is specifically designed for ECM (Electronically Commutated Motor) air handlers and communicating systems. Using it with a standard PSC motor may cause system errors or hardware damage.
What do the flashing error codes on the board mean?
The LED flashes correlate to specific issues. For example, an EE5 code typically indicates a blown or missing fuse, while other codes can point to blower motor communication failures or internal microprocessor faults.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $243.10
-65%$243.10
$85.08Amana-Goodman PCBJA104S PCM
