Aegis Bearing Protection Rings SGR-95-UKIT Rings
The Aegis Bearing Protection Rings SGR-95-UKIT is a professional-grade shaft grounding ring engineered to provide superior protection for electric motors with a 95mm shaft diameter. Specifically designed to mitigate the risks associated with variable frequency drives (VFDs), this solid ring utilizes patented Electron Transport Technology. By employing a 360-degree array of conductive microfibers, the SGR-95-UKIT creates a reliable, low-resistance path to divert harmful shaft voltage away from motor bearings. This essential HVACR component prevents premature wear, pitting, and fluting, ensuring long-term operational reliability in demanding industrial environments. The universal UKIT mounting hardware allows for versatile installation across various motor frames, including NEMA and IEC standards. Built for durability and high-frequency current discharge, this bearing protection solution is a critical upgrade for any VFD-controlled system, maintaining the integrity of mechanical components and reducing unexpected downtime.
Key Benefits
- Enhanced Component Longevity: Prevents electrical discharge machining (EDM) damage to bearings, extending the service life of your motor.
- VFD Compatibility: Specifically optimized to handle high-frequency voltages generated by modern variable frequency drives.
- Maintenance-Free Operation: The conductive microfibers are designed for minimal wear, providing years of reliable service without regular adjustment.

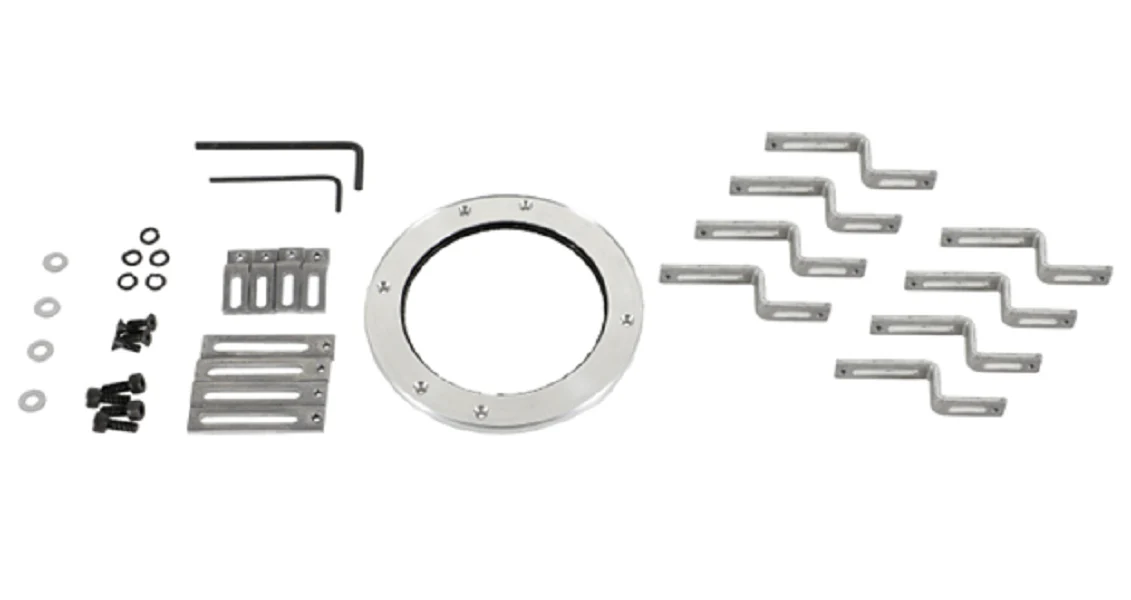

- Universal Mounting: Includes a comprehensive UKIT with brackets and hardware to fit a wide range of motor end-brackets and shaft configurations.
- Proven Reliability: Trusted industrial technology used globally to protect critical HVAC and pumping infrastructure.
Common Questions
How does a shaft grounding ring prevent bearing failure?
VFDs induce voltages on the motor shaft that seek a path to ground through the bearings, causing arcing and physical damage. The Aegis SGR-95-UKIT provides a much lower resistance path through its microfibers, safely draining that current to the motor frame instead.
Can this ring be used on any 95mm shaft?
Yes, as long as the shaft diameter is 95mm, the included universal mounting brackets allow it to be adapted to most motor faces. Always verify the physical clearance around the shaft before installation.
Does the shaft require special preparation?
For optimal shaft grounding, the area where the microfibers make contact must be clean and free of paint, rust, or heavy grease. A light polishing of the shaft is often recommended during installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
This item is not eligible for free shipping.
