Aegis Bearing Protection Rings SGR-95-UKIT-2A4 Rings
The Aegis Bearing Protection Rings SGR-95-UKIT-2A4 Rings provides a high-performance solution for shaft grounding, specifically engineered to eliminate destructive bearing currents in large electric motors. Designed as a 95mm split ring, this uKIT series allows for a split-path installation, meaning it can be mounted around the shaft without the need for motor disassembly or shaft-end removal. Utilizing patented conductive microfiber technology, the Aegis SGR-95-UKIT-2A4 creates a low-impedance path to ground, effectively preventing bearing fluting and pitting caused by VFD-induced shaft voltage. This motor grounding ring is compatible with IEC motor frames 335 and 355, featuring a durable aluminum construction that ensures 360-degree circumferential contact. By diverting stray electrical currents away from critical internal components, this split grounding ring significantly increases the reliability of HVACR and industrial motor systems, preventing premature motor failure and reducing operational downtime in high-demand environments.
Key Benefits:
- Split Ring Design: Specifically engineered for easy retrofitting on existing installations without motor disassembly.
- Enhanced Motor Longevity: Prevents electrical discharge machining (EDM) damage by safely grounding high-frequency shaft voltages.
- Universal Compatibility: The uKIT hardware fits multiple IEC frame sizes (335L, 335M, 355L, 355M) for broad application versatility.
- High-Frequency Protection: Optimized for use with Variable Frequency Drives (VFD) to mitigate the risk of bearing pitting.
- Low Maintenance: Features fiberlock channel technology that securely holds microfibers for consistent, long-term performance.
Common Questions:
How do I know if I need a 95mm split ring?
The SGR-95-UKIT-2A4 is sized for a nominal shaft diameter of 95 mm. If your motor is currently in operation and you cannot slide a ring over the end of the shaft, the split ring design is the ideal choice for onsite installation.
Does this kit include mounting hardware?

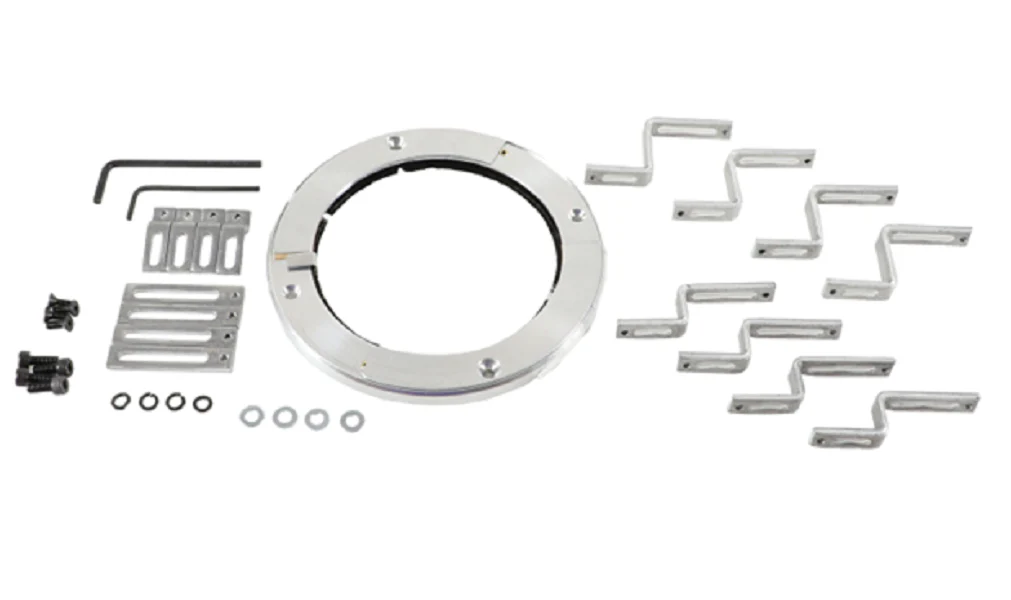

Yes, the uKIT includes four styles of universal mounting brackets, screws, and washers to ensure the grounding ring maintains proper contact with the motor shaft across various housing contours.
Why is shaft grounding necessary for VFD motors?
VFDs induce stray currents that seek the path of least resistance to ground—often through the bearings. Without a dedicated grounding path, this results in bearing fluting, leading to noise, vibration, and total motor failure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
