Aegis Bearing Protection Rings SGR-80-UKIT-2A4 Rings

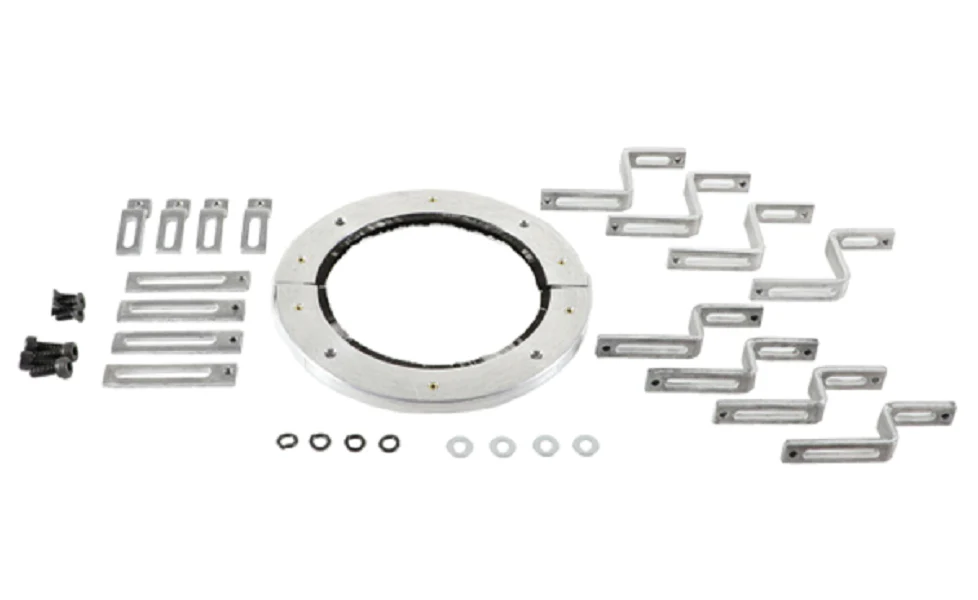

The Aegis SGR-80-UKIT-2A4 is a professional-grade split shaft grounding ring designed to provide superior bearing protection for electric motors. Engineered for an 80mm shaft diameter, this uKIT utilizes proprietary conductive microfiber technology to create a low-impedance path to the ground, effectively diverting VFD-induced currents away from critical motor components. In modern HVACR and industrial environments, high-frequency discharges from variable frequency drives can lead to devastating motor bearing damage such as fluting, pitting, and frosting. By installing this AEGIS SGR ring, technicians can significantly extend the operational life of IEC frame motors and reduce the frequency of costly mechanical failures. The split ring design is a major advantage for retrofitting, as it allows for a seamless installation without the need to decouple the motor or remove the shaft end. This specific kit (SGR-80-UKIT-2A4) comes complete with universal mounting brackets and essential hardware, ensuring high-performance shaft grounding and industrial reliability across various mounting configurations.
Key Benefits:- Enhanced Motor Longevity: Prevents electrical discharge machining (EDM) in bearings, ensuring long-term reliability in VFD-driven applications.
- Rapid Split-Ring Installation: The uKIT design allows for quick installation on 80mm shafts without dismantling the motor, saving on labor and downtime.
- Proprietary Microfiber Technology: Uses high-density conductive microfibers to maintain constant contact for efficient shaft grounding.
- Universal Compatibility: Includes 16 brackets of varying styles to fit almost any motor configuration, including IEC 315S, 315M, and 315L frames.
- Maintenance-Free Performance: Designed to last for the life of the motor without ongoing adjustments or cleaning requirements.
Can I install this on a motor with a keyway?
Yes, but the keyway must be filled with a fast-curing epoxy to ensure the microfibers have a smooth, continuous surface for contact.
Does the shaft require special preparation?
The shaft surface must be cleaned of all paint, rust, and non-conductive coatings to the bare metal to ensure electrical conductivity.
Is this kit suitable for high-voltage motors?
The SGR-80-UKIT-2A4 is specifically optimized for low-voltage AC motors (up to 500HP) and DC motors (up to 300HP) typically found in HVACR systems.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
This item is not eligible for free shipping.
