Aegis Bearing Protection Rings SGR-75-UKIT Rings
The AEGIS SGR-75-UKIT is a professional-grade Bearing Protection Ring designed specifically for motors with a 75mm shaft diameter. This solid shaft grounding ring utilizes patented FiberBolt technology to provide a low-impedance path to ground, effectively diverting harmful VFD-induced shaft voltages away from the bearings. By mitigating electrical bearing damage, such as EDM pitting and fluting, the SGR-75-UKIT prevents premature motor failure and extends the operational life of industrial equipment. This shaft grounding kit features high-quality conductive microfibers that maintain a continuous electrical connection even in high-speed applications. Engineered for durability, the Aegis SGR is an essential component for maintenance teams seeking to improve motor reliability and reduce unplanned downtime in HVACR and industrial pumping systems.
Key Benefits
- Eliminates Bearing Current: Prevents electrical discharge machining (EDM) from destroying motor bearings.
- Universal Compatibility: The uKIT design allows for versatile mounting on most NEMA or IEC motor frames.
- Solid Construction: Provides a robust, 360-degree contact surface for superior grounding performance.
- Maintenance-Free: Engineered to last the life of the motor without requiring frequent adjustment or cleaning.
Common Questions
How do I know if my motor needs an AEGIS SGR-75-UKIT?
If your motor is controlled by a Variable Frequency Drive (VFD), high-frequency voltages are likely accumulating on the shaft. Any motor with a 75mm shaft diameter used in an inverter-duty application is at risk for bearing fluting and should utilize a bearing protection ring.
What is included in the SGR-75-UKIT?

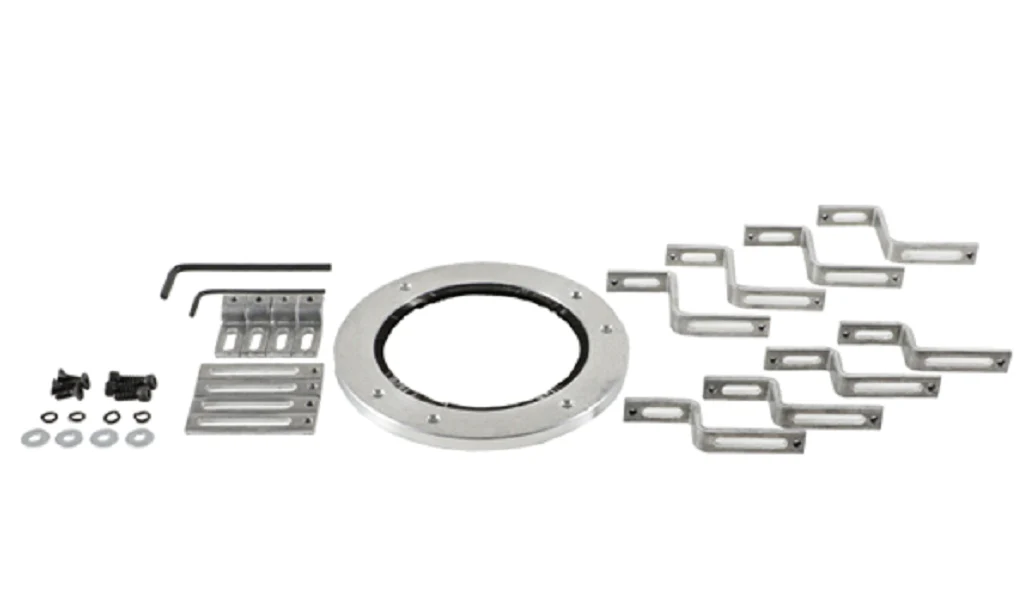

The kit includes the solid Aegis SGR ring, various mounting brackets (uKIT), and required hardware to ensure a secure installation on the motor end bell.
Can this ring be installed without disassembling the motor?
Yes, the AEGIS SGR-75-UKIT is designed for external mounting on the shaft, making it easy to retrofit onto existing motors without teardowns.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
This item is not eligible for free shipping.
