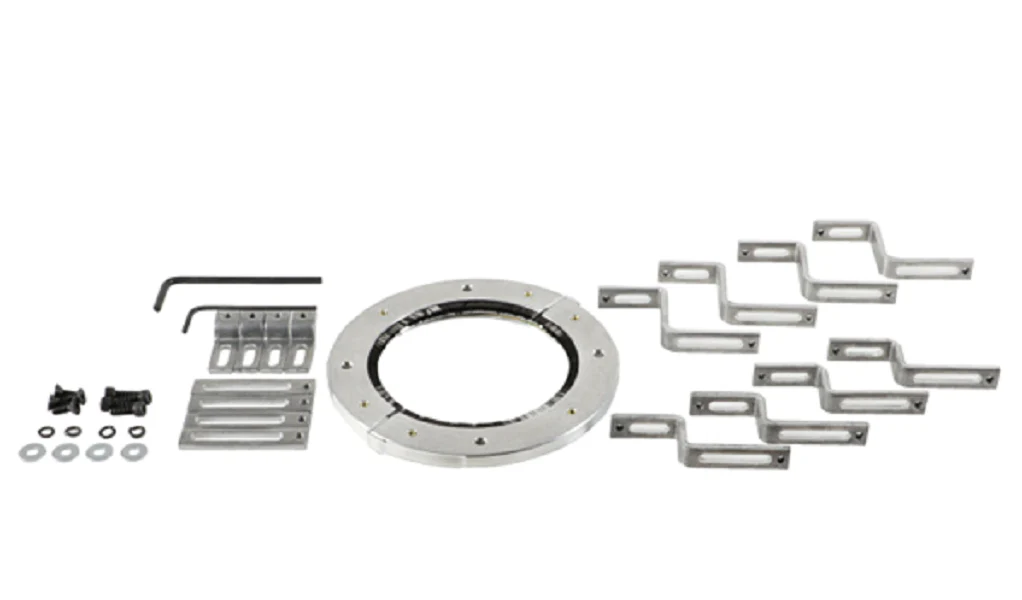

Aegis Bearing Protection Rings SGR-75-UKIT-2A4 Mounting Kit
The Aegis SGR-75-UKIT-2A4 Mounting Kit is a specialized shaft grounding ring solution designed to mitigate bearing fluting and electrical damage in high-performance motors. This split ring universal mounting kit is engineered for a 75mm shaft diameter, providing a pathway for harmful VFD-induced currents to safely bypass motor bearings. Specifically optimized for IEC frames 280S, 280M, 355M, and 355L, this kit ensures bearing protection by utilizing patented conductive microfibers. Its versatile design allows for installation over existing slingers or shaft shoulders, making it a critical component for EDM current mitigation in industrial HVACR systems. Whether using the included universal mounting brackets or AEGIS Conductive Epoxy EP2400, this kit provides a motor shaft grounding solution that maximizes uptime and operational efficiency.
Key Benefits
- Eliminates Bearing Fluting: Diverts electrical discharge to prevent premature bearing failure and noise.
- Universal Compatibility: Includes 16 brackets in 4 styles to fit various motor end bell configurations.
- Non-Invasive Installation: The split ring design allows for field installation without disassembling the motor coupling.
- Enhanced Conductivity: High-speed shaft grounding ring technology ensures reliable contact even in contaminated environments.
- Maintenance Reduction: Significantly extends the service life of internal motor components by preventing EDM currents.
Common Questions
How do I know if I need a split ring or a solid ring?
The SGR-75-UKIT-2A4 features a split ring design, which is ideal for retrofitting onto motors where the shaft ends are not easily accessible. Solid rings are typically reserved for new motor builds or during complete overhauls.
Can this kit be installed without drilling?
Yes, while the kit includes hardware for screw-on mounting, it is fully compatible with AEGIS Conductive Epoxy EP2400 for a secure, permanent bond without drilling into the motor frame.
What motor frames does the 75mm kit support?
This 75mm universal fit kit is specifically designed for IEC frames 280S and 280M (4, 6, 8 pole), as well as 355M and 355L (2 pole) motors.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
