Aegis Bearing Protection Rings SGR-60-UKIT-2A4 Rings

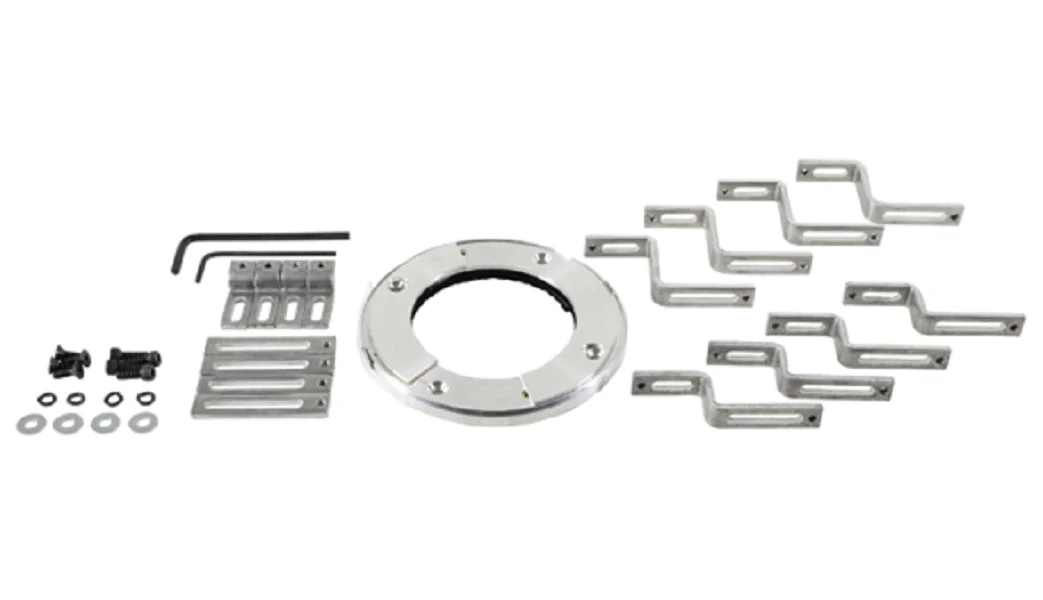

The Aegis SGR-60-UKIT-2A4 Bearing Protection Ring is a professional-grade shaft grounding solution engineered to eliminate electrical bearing damage in VFD-driven motors. High-frequency shaft voltages induced by Variable Frequency Drives can lead to pitting, frosting, and fluting; however, this split shaft grounding ring utilizes patented AEGIS® conductive microfiber technology to safely divert harmful currents to ground. Designed for a 60mm shaft diameter, the SGR-60-UKIT-2A4 features a split-style construction that allows for rapid installation without the need to decouple the motor from its load. This makes it an essential component for VFD motor maintenance and reliability programs. Compatible with IEC 225S, 225M, and 250M motor frames, the included universal mounting kit provides maximum flexibility for both internal and external mounting configurations in HVACR, pumping, and industrial automation applications.
Key Benefits:
- Advanced Bearing Protection: Prevents electrical discharge machining (EDM) to extend the service life of motor bearings.
- Simplified Retrofitting: The split design allows for 15-minute field installations without disassembling the drive system.
- Universal Compatibility: Includes specialized mounting hardware for diverse industrial motor frames.
- Maintenance-Free Operation: Conductive microfibers provide a consistent low-impedance path to ground for the life of the motor.
- Optimized for VFDs: Specifically built to handle high-frequency shaft grounding requirements in modern inverter-fed systems.
Common Questions:
How do I know if I need a 60mm shaft grounding ring?
If you are operating a VFD-driven motor with a 60mm shaft, it is highly susceptible to induced shaft voltages. Installing an Aegis SGR prevents the premature failure of bearings, which is the leading cause of motor downtime.
Can the SGR-60-UKIT-2A4 be used on both AC and DC motors?
Yes, this bearing protection kit is effective for any motor experiencing shaft current issues, including AC induction motors and DC motors used in heavy industrial environments.
Is the universal mounting kit suitable for non-flat surfaces?
The UKIT includes brackets and hardware designed to accommodate various motor end-bracket geometries, ensuring a secure and conductive connection to the motor frame.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
