Aegis Bearing Protection Rings SGR-1.375-UKIT-1A4 Rings
The Aegis SGR-1.375-UKIT-1A4 Bearing Protection Ring is the premier shaft grounding solution for industrial motors facing electrical bearing failures. Specifically engineered for a 1.375-inch shaft diameter and compatible with NEMA 213T and 215T frame sizes, this split shaft grounding ring allows for rapid installation without the need to decouple motor components. By effectively channeling harmful VFD-induced shaft voltages safely to the ground, the Aegis SGR-1.375-UKIT-1A4 prevents EDM pitting and fluting that leads to premature bearing failure. This kit is identical to the SGR-1.375-1A4 model, offering the same high-performance conductive microfibers that ensure continuous electrical contact around the circumference of the shaft. Utilizing Aegis technology, this internal mounting kit is essential for HVACR systems and industrial automation where variable frequency drives are utilized to maximize equipment reliability and operational uptime.
Key Benefits of Aegis Bearing Protection- Prevents EDM Damage: Acts as a sacrificial path to discharge peak shaft voltages, protecting internal motor bearings from electrical tracks.
- Split Ring Design: Engineered for easy field installation, fitting over shaft shoulders and slingers without complete motor disassembly.
- Universal Compatibility: Seamlessly integrates with NEMA 213T and 215T motor frames, frequently found in centrifugal pumps and air handlers.
- Maintenance-Free Operation: Provides 360 degrees of contact with the shaft, ensuring long-term grounding performance in harsh environments.
How do I install the Aegis SGR-1.375-UKIT-1A4 on a motor?

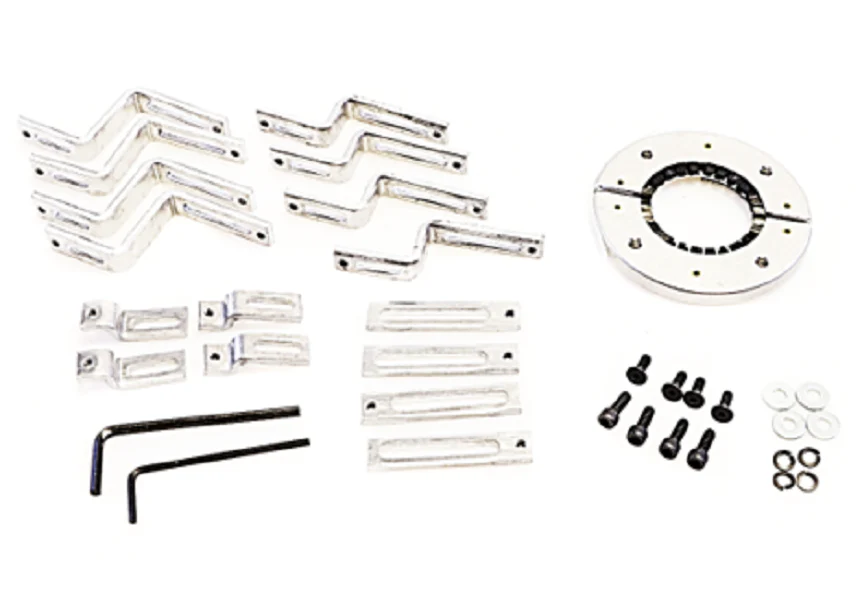

The split ring can be mounted using the included brackets or by using conductive epoxy for a secure, low-impedance electrical connection to the motor frame.
Why is bearing protection necessary for VFD-driven motors?
Variable frequency drives create high-frequency parasitic voltages that build up on the motor shaft; without grounding, these discharge through the bearings, causing noise and failure.
Can this ring handle contaminants like grease or dust?
Yes, the conductive microfibers are designed to work even in the presence of light oil and dust, maintaining a reliable path to ground for shaft currents.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
This item is not eligible for free shipping.
Original: $512.78
-65%$512.78
$179.47Aegis Bearing Protection Rings SGR-1.375-UKIT-1A4 Rings
The Aegis SGR-1.375-UKIT-1A4 Bearing Protection Ring is the premier shaft grounding solution for industrial motors facing electrical bearing failures. Specifically engineered for a 1.375-inch shaft diameter and compatible with NEMA 213T and 215T frame sizes, this split shaft grounding ring allows for rapid installation without the need to decouple motor components. By effectively channeling harmful VFD-induced shaft voltages safely to the ground, the Aegis SGR-1.375-UKIT-1A4 prevents EDM pitting and fluting that leads to premature bearing failure. This kit is identical to the SGR-1.375-1A4 model, offering the same high-performance conductive microfibers that ensure continuous electrical contact around the circumference of the shaft. Utilizing Aegis technology, this internal mounting kit is essential for HVACR systems and industrial automation where variable frequency drives are utilized to maximize equipment reliability and operational uptime.
Key Benefits of Aegis Bearing Protection- Prevents EDM Damage: Acts as a sacrificial path to discharge peak shaft voltages, protecting internal motor bearings from electrical tracks.
- Split Ring Design: Engineered for easy field installation, fitting over shaft shoulders and slingers without complete motor disassembly.
- Universal Compatibility: Seamlessly integrates with NEMA 213T and 215T motor frames, frequently found in centrifugal pumps and air handlers.
- Maintenance-Free Operation: Provides 360 degrees of contact with the shaft, ensuring long-term grounding performance in harsh environments.
How do I install the Aegis SGR-1.375-UKIT-1A4 on a motor?
The split ring can be mounted using the included brackets or by using conductive epoxy for a secure, low-impedance electrical connection to the motor frame.
Why is bearing protection necessary for VFD-driven motors?
Variable frequency drives create high-frequency parasitic voltages that build up on the motor shaft; without grounding, these discharge through the bearings, causing noise and failure.
Can this ring handle contaminants like grease or dust?
Yes, the conductive microfibers are designed to work even in the presence of light oil and dust, maintaining a reliable path to ground for shaft currents.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
