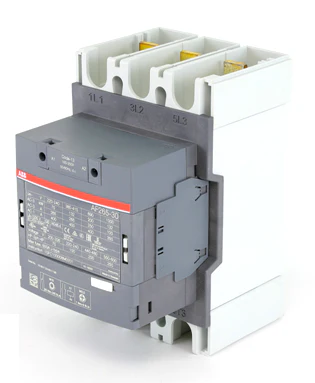

ABB AF265-30-11-13 Contactor
The ABB AF265-30-11-13 Contactor is a high-performance 3-pole IEC contactor engineered for demanding industrial motor control and power switching applications. Featuring advanced AF technology, this unit operates across a versatile 100-250V AC/DC control voltage range, allowing a single coil to manage significant voltage fluctuations and reducing overall panel energy consumption. Designed for 265 Amp loads, it is an ideal solution for heavy-duty HVACR equipment, motor starting, and bypass distribution systems up to 1000V.
This robust magnetic contactor comes equipped with screw terminals and integrates 1 NO and 1 NC auxiliary contacts for precise feedback and signaling. Its block-type design includes built-in surge protection, eliminating the need for external suppressors and saving valuable space in electrical enclosures. Whether utilized in complex industrial automation or large-scale commercial climate control, the ABB AF series ensures distinct, reliable operations even in unstable electrical networks.
Key Benefits
- Universal Voltage Compatibility: The wide 100-250V AC/DC coil reduces the need for multiple parts by handling various global control voltages.
- Enhanced Efficiency: Integrated electronically controlled coils lower holding power consumption and minimize heat dissipation.
- Stable Operation: Specially designed to withstand short voltage dips and sags, ensuring continuous performance in fluctuating power conditions.
- Integrated Protection: Features built-in surge suppression to protect sensitive downstream components from electrical transients.
- Application Versatility: Ideal for AC-3 motor starting up to 132 kW or AC-1 power circuit switching up to 400A.
Common Questions
Can the AF265-30-11-13 be used for both AC and DC control circuits?
Yes, the advanced electronic coil interface allows the contactor to be operated by any control voltage between 100V and 250V, whether it is 50/60 Hz AC or DC.
What is the maximum amperage for general use applications?
For AC-1 non-inductive loads, this unit can switch power circuits up to 400A, while it is rated for 265A in standard AC-3 motor applications.
Does this contactor require an external surge protector?
No, this model features built-in surge protection as part of its compact block design, which simplifies installation and reduces bill-of-materials costs.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
