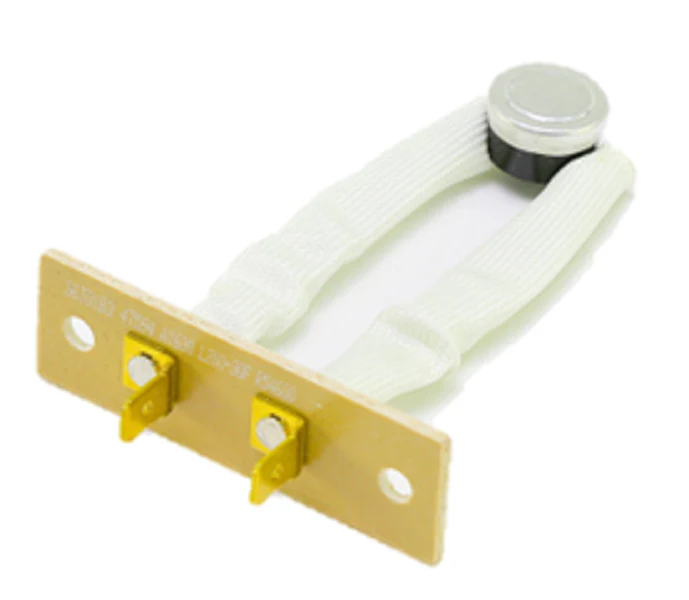

Aaon R54600 Limit Switch
The Aaon R54600 Limit Switch is a critical safety component designed for high-limit temperature monitoring in commercial HVAC systems. This L280-30F 3" limit switch features a 280-degree Fahrenheit cutout and a 30-degree differential, ensuring precise thermal protection for heat exchangers and blower assemblies. Engineered for Aaon rooftop unit parts replacement, this SPST (Single Pole Single Throw) fixed-temperature control operates on an open-on-rise logic to interrupt the heating circuit when safety thresholds are exceeded. The 3-inch insertion depth and manual reset limit switch functionality make it a standard industrial solution for preventing equipment overheating. When performing HVAC high-limit switch troubleshooting, ensure terminal connections are secure and the sensing element is positioned in the direct airflow path for accurate thermal response. This OEM HVAC replacement part maintains system integrity by preventing thermal runaway in large-scale air handling units and furnace applications.
Key Benefits
- Precise Thermal Calibration: Features a fixed 280°F trip point with a 30°F differential for reliable safety cycling.
- Direct OEM Compatibility: Specifically designed as a drop-in replacement for Aaon heating systems to minimize downtime.
- Robust Construction: Built to withstand high-vibration environments typical of commercial rooftop air handlers.
- Safety Compliance: Acts as a primary high-limit safety to protect heat exchangers from structural damage.
Common Questions
What causes this limit switch to trip repeatedly?
Repeated tripping usually indicates restricted airflow, such as a dirty filter, blocked return air, or a failing blower motor. If the limit switch circuit remains open after the unit cools, the internal bimetal disc may be fatigued.
Can I bypass this switch for testing purposes?
Technicians should only bypass a high-limit switch momentarily for diagnostic continuity checks. Never operate the equipment permanently without a functioning limit control, as this presents a significant fire hazard.
Is the R54600 compatible with other HVAC brands?
While the L280-30F specifications are common, the mounting flange and probe length are specific to Aaon configurations. Verify the 3-inch depth and bolt pattern before attempting to install in non-Aaon equipment.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
