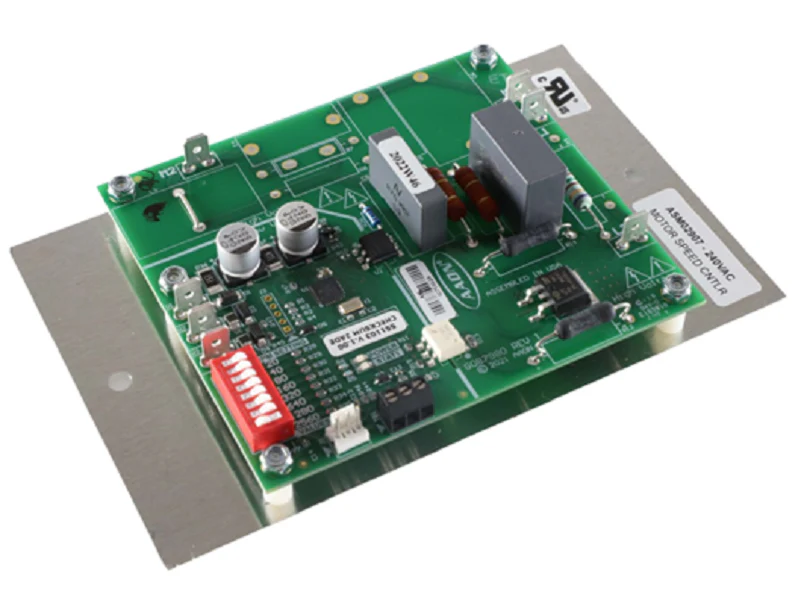

Aaon ASM02907 Speed Control
Enhance your HVAC system's performance with the Aaon ASM02907 Speed Control, a precision-engineered Motor Speed Control 240v designed specifically for alternating current (AC) induction motors in combustion air blowers. This high-performance HVAC motor speed controller utilizes advanced triac-based phase control to regulate voltage based on real-time tachometer feedback, ensuring your system maintains exact RPM setpoints. Compatible with Permanent Split Capacitor (PSC) and shaded pole motors, the ASM02907 features a dual-speed configuration powered by two 24VAC binary inputs. This OEM AAON replacement part is built with an integrated aluminum base plate for superior heat dissipation and thermal regulation, providing reliable operation in demanding ventilation environments. By optimizing motor output to match current demand, this 240V fan speed control board significantly improves energy efficiency and reduces overall operational noise in commercial heating and cooling units.
Key Benefits- Precise Speed Regulation: Features both variable speed and two-speed modes (High/Low) via 24VAC control inputs for tailored airflow.
- Advanced Feedback Logic: Employs a Hall effect tachometer sensor input to continuously monitor and adjust motor voltage.
- Enhanced Thermal Management: The factory-mounted aluminum base plate facilitates maximum heat dissipation for electronic longevity.
- Industrial Durability: Rated for a wide operating temperature range of -40°C to +70°C, suitable for rigorous industrial applications.
- Energy Efficiency: Real-time adjustments based on system demand help lower power consumption and reduce utility costs.
Is the Aaon ASM02907 compatible with all AC motors?
This controller is specifically designed for Permanent Split Capacitor (PSC) or shaded pole motors equipped with a one pulse per revolution Hall effect tachometer sensor. Always verify motor type before installation.
What are the voltage requirements for this controller?
The unit requires a 204-254 VAC (240V) motor power source and 18-30 VAC for logic control power.
What is the maximum current rating for this board?
The Aaon ASM02907 is rated for a motor current of 4.0 Amps.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
