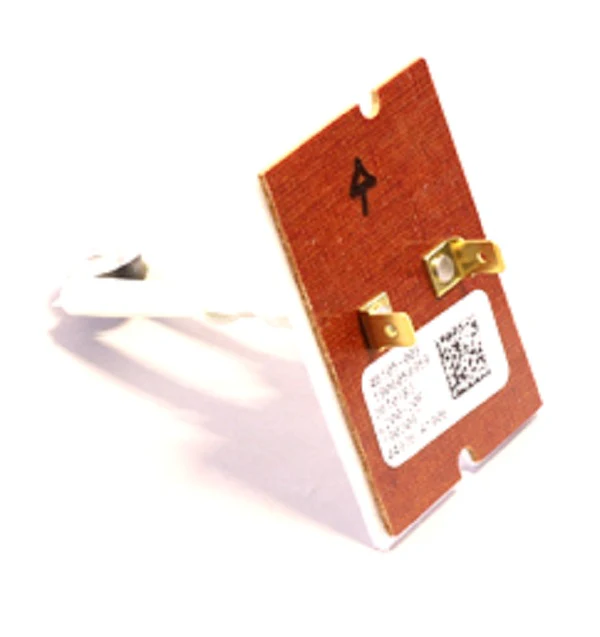

Lennox 56W23 Limit Switch
The Lennox 56W23 Limit Switch is a critical safety component designed for high-temperature monitoring in residential and commercial furnaces. Identified by its L200-30F specification, this switch is engineered to open the electrical circuit at a fixed temperature of 200°F and automatically reset once the temperature drops by a 30°F differential. This SPST (Single Pole Single Throw) normally closed sensor prevents heat exchanger damage and hazardous conditions by interrupting the burner cycle during airflow restrictions or blower motor failure. As a direct replacement for 46105-008 and 56W2301, it ensures precise furnace high limit protection and system reliability. This Lennox OEM replacement part features a two-pin male spade connector interface for a secure electrical connection. When diagnosing furnace cycling issues or a tripped limit switch, verify that the 200-degree cutout rating matches the manufacturer's data plate requirements to maintain HVAC safety circuit integrity and optimal thermal performance in Lennox G-series units.
Key Benefits for HVAC Contractors- Precise Thermal Calibration: Fixed 200°F cutout protects the heat exchanger from structural fatigue during overheating events.
- Direct OEM Compatibility: Replaces Lennox 56W23, 56W2301, and 46105-008 without the need for mounting modifications.
- Automatic Reset Logic: Features a 170°F re-close threshold, reducing unnecessary service calls for manual resets while ensuring safe operation.
- Rugged Build Quality: Designed to withstand the high-temperature environment of the furnace plenum for long-term HVAC system reliability.
What causes a Lennox 56W23 limit switch to trip repeatedly?
Frequent tripping is usually indicative of restricted airflow. Check for a clogged MERV-rated air filter, blocked return air grilles, or a failing blower motor capacitor that is preventing the heat exchanger from being cooled properly.
How do I test the Lennox L200-30F limit switch?
With power disconnected, use a multimeter to check for continuity across the terminals. Because this is a normally closed switch, you should see zero ohms at room temperature. If the circuit is open while the unit is cool, the switch has failed and requires replacement.
Can I substitute this with a switch of a different temperature rating?
No. Using a switch with a higher cutout rating than the L200-30F can lead to heat exchanger cracking or fire hazards. Always match the OEM Lennox 56W23 specifications for your specific furnace model.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
