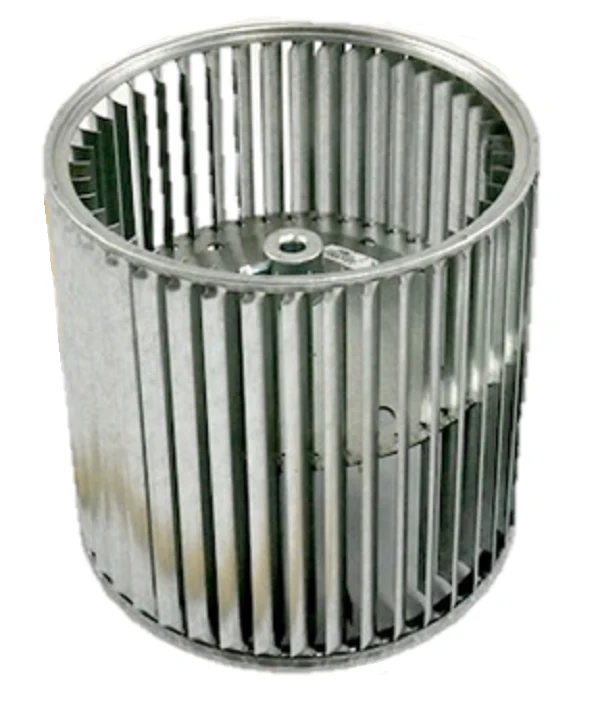

Lau 01333701 Blower Wheel
The Lau 01333701 Blower Wheel is a precision-engineered double inlet blower wheel designed for high-performance direct drive HVACR applications. Built with galvanized cold rolled steel, this CW rotation wheel features a 9 1/2-inch diameter and 8-inch width, making it a standard replacement for residential and commercial air handlers. The convex center disc design and Preslok blade retention system ensure structural integrity under a 1750 max RPM load. With 43 forward-curved blades, the DD9-8A model provides consistent airflow and reduced vibration. The 1/2-inch bore is sized for common motor shafts, allowing for straightforward installation in furnace blowers and evaporative coolers. This squirrel cage blower wheel is balanced to minimize bearing wear and noise, maintaining efficiency in high-static pressure environments. When selecting a replacement blower wheel, verify the rotation by viewing the hub end to ensure compatibility with your existing motor and housing configuration.
Key Benefits- Dynamic Balance: Factory-set balancing reduces vibration, extending the life of the motor and bearings.
- Preslok Technology: Features mechanical blade-to-center-disc locking for high-speed stability and durability.
- Corrosion Resistance: Fabricated from galvanized steel to withstand moisture-laden environments in HVAC blower motor assemblies.
- Universal Compatibility: Standard dimensions (9.5" x 8") facilitate replacement across multiple OEM furnace and AC brands.
How do I confirm the correct rotation for the Lau 01333701?
Rotation is determined by looking at the hub/bore end. This specific model is Clockwise (CW) rotation from the hub side. Incorrect rotation will result in significantly reduced airflow and potential motor overheating.
Is this blower wheel compatible with belt-drive systems?
No, the 01333701 is specifically designed for direct drive motors. Belt-drive wheels typically require a different hub configuration and shaft size to handle the external torque of a pulley system.
Can I use this wheel if my motor exceeds 1750 RPM?
This wheel is rated for a maximum of 1750 RPM. Operating above this limit can lead to blade deformation or catastrophic failure. Always verify your motor's nameplate RPM before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
